Wireless 80mm Mini Portable Label Printer POS-8008

CPCL: The Reason a Portable Printer Gets Rejected

An organisation buys a batch of mobile label printers, hands them to drivers or field engineers, and discovers that the app they already run emits CPCL. The printer speaks TSPL. Nothing prints, the project stalls, and the printers go into a cupboard.

That failure is common enough to be the first specification to check. The POS-8008 accepts ESC/POS, TSPL and CPCL — the three languages that between them cover virtually every mobile label application in use, including the large installed base of Zebra-style CPCL software.

Why Three Languages Is Not Redundancy

Each language exists because a different generation of software was written against it.

• TSPL is the TSC language and the one most modern label design tools and warehouse systems emit. If your system was built in the last fifteen years, it probably speaks TSPL.
• CPCL is Zebra’s Compact Printer Command Language, used by a very large installed base of handheld and mobile applications, particularly in logistics, field service and route accounting. An app written for a Zebra mobile printer emits CPCL, and it will not fall back to TSPL.
• ESC/POS is the receipt language, which is why this unit can also print a plain receipt on continuous stock.

Having all three means the printer can be dropped into an existing workflow rather than requiring the workflow to be changed — which for a fleet of drivers with a live app is the difference between a purchase and a project.

80 mm in a Mini Body

The unit takes paper from 30 to 72 mm wide on rolls up to 50 mm diameter, at 203 dpi and 70 mm/s. That is the “mini 80 mm” format: narrower than a full 4-inch label but wide enough for a carton label, a delivery note or a two-column asset tag.

The 72 mm paper ceiling is worth being clear about. If your labels are standard 100 × 150 mm shipping labels, this is not the printer — those need a 4-inch mechanism, and even the POS-8007 only reaches 80 mm of paper with a 72 mm print width. This unit is for the smaller label formats: 50 × 30 mm carton marks, 60 × 40 mm asset tags, 72 mm delivery slips.

Print speed of 70 mm/s is faster than the wider portable units in the range, which is the benefit of the narrower head: less energy per millimetre of paper, so the same battery drives the mechanism faster.

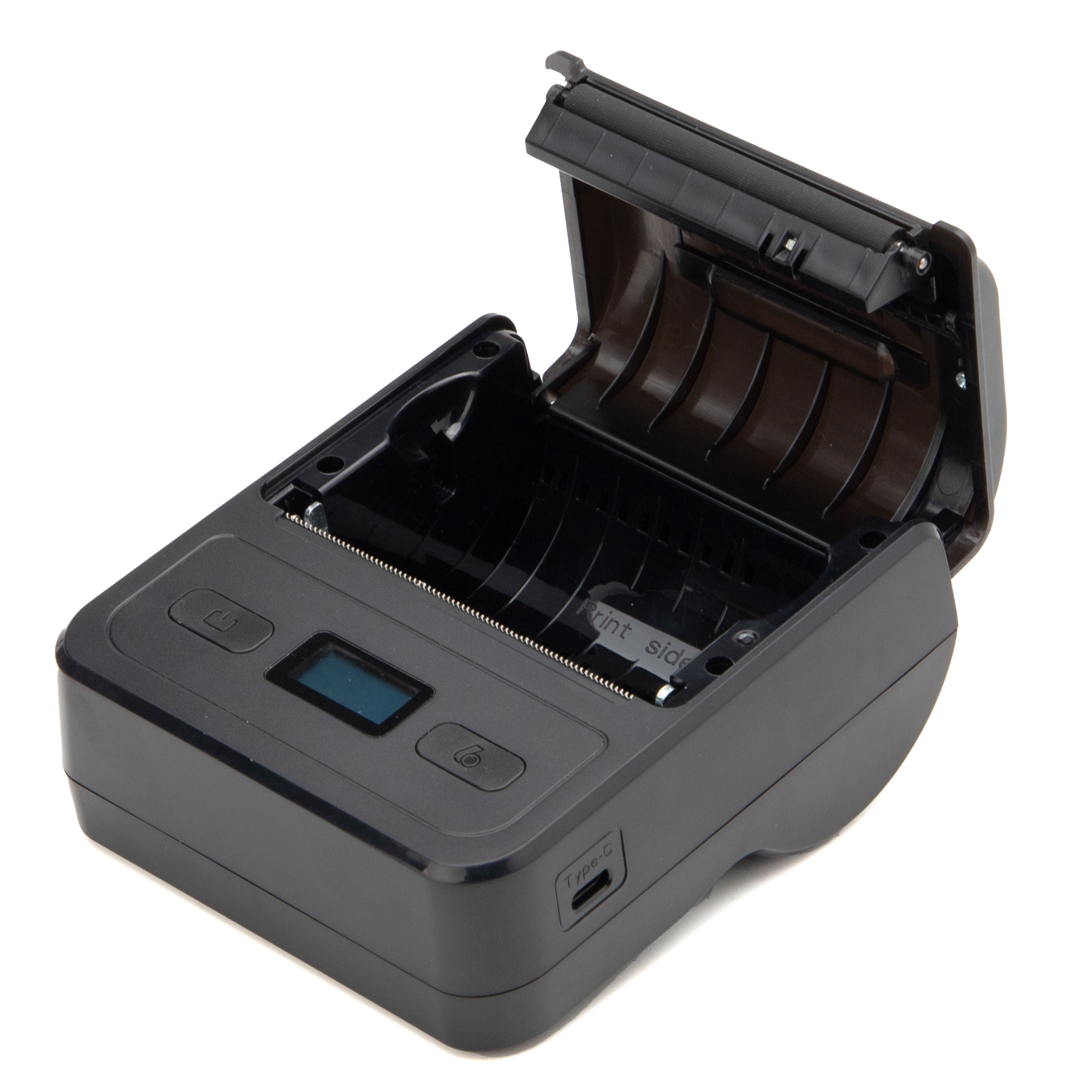

The Cover-Open Alarm

The alarm set on this model adds cover-open detection to the usual paper-out and low-battery warnings.

That is a small feature with a specific value on a portable device. A printer carried in a bag gets its cover knocked open; the operator presses print, the mechanism runs, and nothing appears — or worse, the roll unspools inside the bag. Cover-open detection stops the print and reports the cause, so the operator closes the cover instead of concluding that the printer is broken.

The TFT display reports communication mode, printing state, out of paper, out of power, sleep mode and paper type, so the alarm and the display together give a specific answer rather than a generic beep.

Detection, Fonts and Codes

Black-mark and label (gap) detection are both fitted, so die-cut and mark-sensed stock register correctly. Paper thickness runs 0.06–0.20 mm.

Fonts cover ASCII at 8 × 16, 12 × 24, 16 × 32 and 24 × 48 dots, plus GBK (16 × 16) and GB1830 (24 × 24) — native CJK text rather than bitmaps, which matters over Bluetooth where sending a bitmap per character is slow and looks coarse at 203 dpi.

Symbologies cover the 1D set — UPC, UPC-E, Code 39, EAN-13, EAN-8, Codabar, Code 128, Code 93, ITF — plus QR and PDF417, generated natively so bar widths are exact.

Battery and Charging

A 2,000 mAh rechargeable lithium pack. Paired with the 70 mm/s mechanism and a narrower head, that gives a working session of several hundred labels — enough for a route, a site visit or a stocktake, not enough for continuous printing all day.

Charging is over USB, which is the practical detail that matters most in the field: the same cable as a phone, a charger in the van, a power bank at a site with no power. Plan a charging routine at end of shift rather than assuming the device will make it through two days.

Where the POS-8008 Fits

• Existing CPCL applications. The reason to choose this model over the wider POS-8007.
• Route accounting and field service. Delivery slips and carton marks printed at the door.
• Smaller label formats. 30–72 mm stock, 203 dpi.
• Fleet deployments where the app cannot change. Three command languages means no integration work.
• Not for full 4-inch shipping labels. 72 mm paper maximum.
• Not for high-volume production labelling. A portable mechanism with a 2,000 mAh battery.
• Not for all-day continuous printing. A session battery, not a shift battery.

The Portable Range

• POS-8008 — this unit. 80 mm mini, ESC/POS, TSPL and CPCL, 30–72 mm paper, 70 mm/s, 2,000 mAh, cover-open alarm.
• POS-8007 — 20–80 mm paper range, 2,600 mAh, TSPL and ESC/POS, TFT display.
• POS-5816 — 58 mm portable label, 20–50 mm paper, 1,500 mAh, 350 g.
• POS-5811 — 58 mm portable receipt printer, 2,000 mAh, 120 rolls per charge.

Frequently Asked Questions

Does it work with Zebra CPCL software?

Yes. CPCL is supported alongside TSPL and ESC/POS, which is the main reason to choose this model over the POS-8007.

What label width does it take?

30–72 mm paper on rolls up to 50 mm diameter. Standard 4-inch shipping labels do not fit.

Can it print a receipt as well as a label?

Yes — ESC/POS is supported, so continuous receipt stock works alongside label stock.

What does the cover-open alarm do?

It stops the print and reports the condition when the cover is not latched, which is common on a device carried in a bag.

Does it print Chinese characters?

Yes, GBK and GB1830 fonts are built in.

What is the warranty?

12 months minimum, 50 km rated print head. OEM branding and packaging available.

Next step: tell us the command language your app emits, the label size and the daily volume — we will confirm the configuration and quote factory-direct. Email sales@dcapos.com or contact us.

Related: POS-9200 label and receipt printer · thermal printers · POS-8007 portable label printer · POS-9210 desktop label printer · POS peripherals

Interfaces	USB+Bluetooth
	Print Command	ESC/POS /TSPL / CPCL
	Print Method	Direct Line Thermal
	Print Speed	70mm/sec
	Print Resolution	203 DPI
	TPH Life	50km (12.5% printing density or less) or per dot: 100 million pulses
	Inner Code	ASCII font library (8×16, 12×24, 16×32, 24×48), GBK (16×16), GB1830 (24X24)
	Print content	English, Numbers, Various symbols, Chinese characters, Graphics, Curves, Pre-stored icons, Barcode
	One-dimensional code	UPC / UPC-E / CODE39 / EAN-13 / EAN-8 / CODABAR / CODE128 / CODE93 / CODE128 / ITF
	Two-dimensional code	QR Code, PDF417
	Parameter settings	Printing parameters, Bluetooth parameters, other parameters, etc.
	Black mark detection	Support
	Label detection	Support
	Status indication TFT display	Communication mode, Printing, Out of paper, Out of power, Sleep mode, Paper type
	Alarm function	Paper out detection, Low battery detection, Cover open
	Available Rang of Paper Width	30-72mm
	Li-Battery	2000 mAh rechargeable lithium battery
