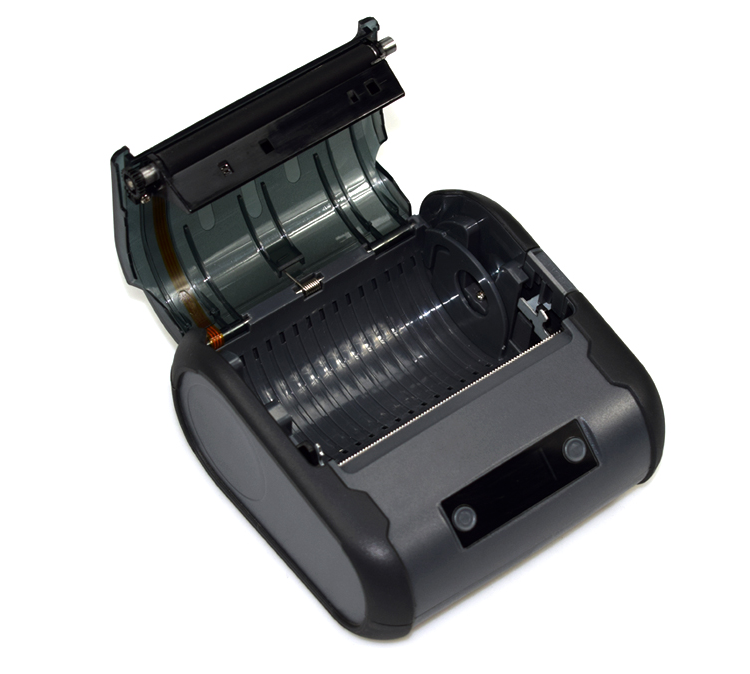

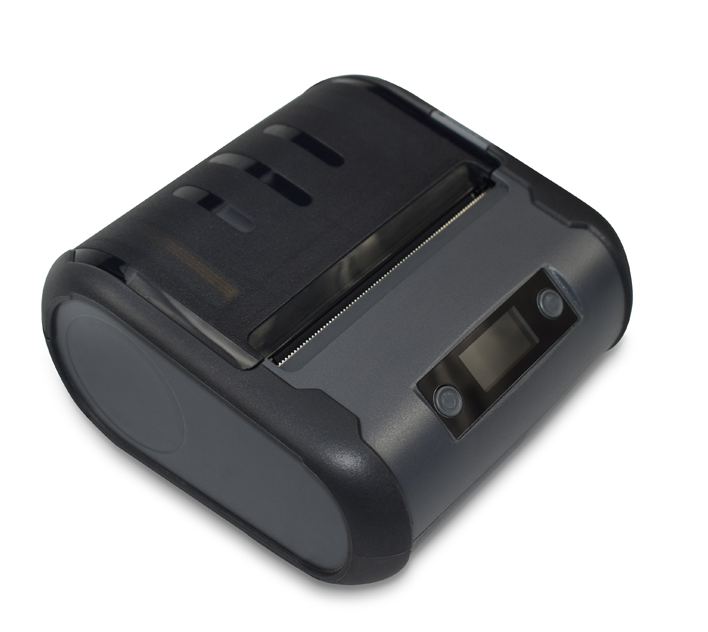

80MM Portable Label Printer POS-8007

A 3-Inch Label Printer That Fits in a Pocket of a Work Bag

Field labelling has a specific constraint: the label is 4 inches wide in the system, and the person applying it is standing in front of a machine, a pallet or a delivery. Printing it in the office and carrying it out is the workflow that fails, because the label is needed at the point of application.

The POS-8007 puts a 3-inch mechanism in a 115 × 110 × 58 mm body at 350 g with the battery in: 72 mm print width, 203 dpi, paper from 20 to 80 mm wide, on a 7.4 V / 2,600 mAh pack, over USB-C or Bluetooth.

20–80 mm: A Wider Range Than Most Portable Units

Most portable label printers cap at 72 or 76 mm of paper. This one accepts 20–80 mm, which means the same device prints:

• 4-inch class labels at 72 mm print width on 80 mm stock — carton labels, pallet labels, asset tags.
• Narrow labels down to 20 mm — cable markers, small asset tags, sample labels.
• Receipt-width stock in between, if the workflow needs a receipt rather than a label.

The roll diameter limit is 50 mm, which is the constraint to plan around: a full-size 80 mm label roll is larger than that, so the unit takes the smaller “mobile” rolls. That is normal for a portable device and it means more roll changes than a desktop printer.

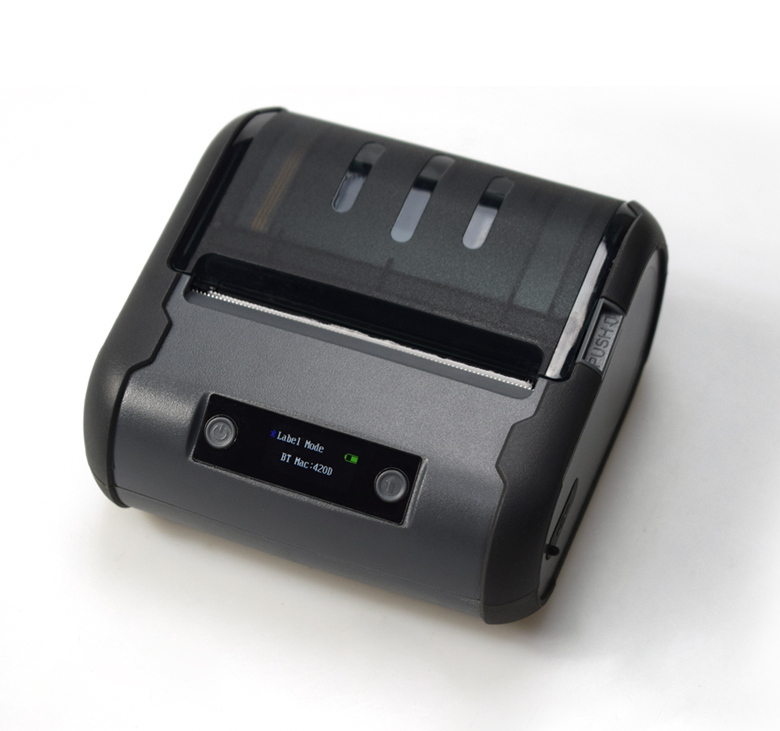

The TFT Status Display: Why It Changes Field Use

The unit has a TFT display that reports communication mode, printing state, out of paper, out of power, sleep mode and paper type.

That sounds like a convenience and is actually a support feature. A portable printer in the field is operated by someone whose job is not printers, and the failure they hit is always one of four things: it will not connect, it has no paper, the battery is flat, or the label stock is the wrong type. A display that names the problem removes the phone call. Compare that with a unit that beeps twice and stops, and the operator has no information at all.

The alarm set covers paper-out and low battery, so the display and the alarm work together: the alarm gets attention, the display explains.

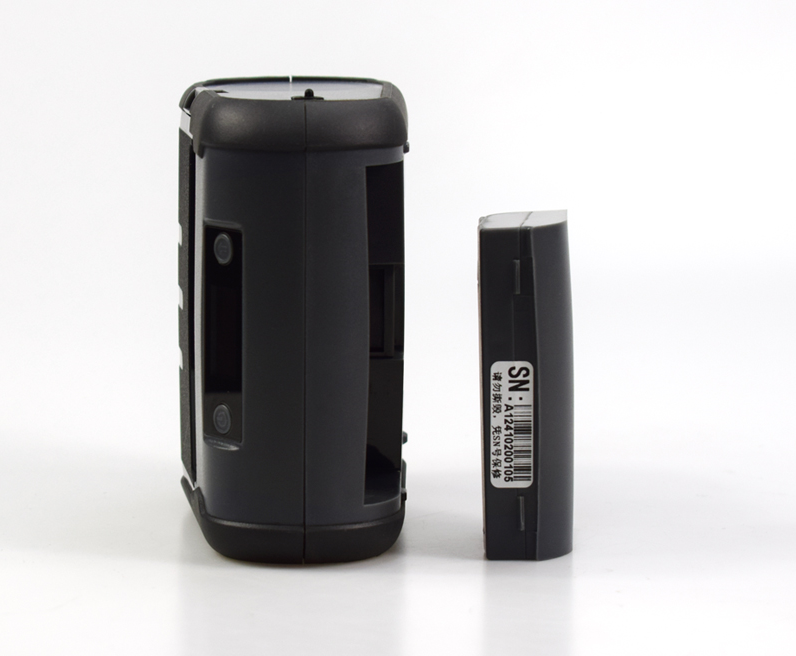

Battery: 2,600 mAh at 7.4 V

Packing a 2,600 mAh lithium pack at 7.4 V into a 350 g device is the reason this model exists alongside the smaller 58 mm portable units. The higher-voltage pack drives the 80 mm mechanism with less current for the same torque, which is why a wider printer can still run a useful session on a charge.

Print speed is 60 mm/s — deliberately slower than the 70 mm/s of the smaller units, because a wider head needs more energy per millimetre of paper. The practical reading: a 100 × 150 mm shipping label takes about 2.5 seconds, and a session of a few hundred labels is within a charge. Continuous all-day printing is not.

Charging is DC 5 V / 1 A over USB-C from a 100–240 V adapter, so a phone charger or a power bank works. That matters in a van, on a site, or at a trade stand.

Fonts, Codes and Local Language Support

The inner code set covers ASCII font libraries at 8 × 16, 12 × 24, 16 × 32 and 24 × 48 dots, plus GBK (16 × 16) and GB1830 (24 × 24). The Chinese character sets are the practical point: a lot of portable label printers print Latin text only, and a deployment that needs CJK text on a label has to send every character as a bitmap, which is slow over Bluetooth and looks poor at 203 dpi. Native GBK support prints CJK text as text.

Symbologies cover the 1D set — UPC, UPC-E, Code 39, EAN-13, EAN-8, Codabar, Code 128, Code 93, ITF — plus QR and PDF417, generated by the printer. Memory is 8 MB ROM and 8 MB DRAM, enough for stored label formats and fonts, which keeps the Bluetooth payload small.

Command languages are TSPL and ESC/POS: TSPL for label software and warehouse systems, ESC/POS for plain receipt output.

Detection and Print Life

Black-mark detection and label (gap) detection are both fitted, so die-cut and mark-sensed stock both register correctly — the thing that separates a label printer from a small receipt printer. Print head life is 50 km at 25% density or 100 million pulses per dot.

Paper thickness runs 0.06–0.20 mm. Synthetic and laminated stocks above that will not feed reliably; standard paper labels are comfortably inside the range.

Where the POS-8007 Fits

• Field service and logistics. Carton, pallet and asset labels printed at the point of application.
• Wide and narrow stock on one device. 20–80 mm paper range.
• Operators who are not printer technicians. The TFT display names the fault.
• CJK label text. Native GBK and GB1830 fonts rather than bitmap text.
• Not for all-day continuous printing. 2,600 mAh is a session battery at 60 mm/s.
• Not for large rolls. 50 mm maximum roll diameter — use a desktop unit for production volumes.
• Not for Zebra CPCL applications. TSPL and ESC/POS only; the POS-8008 adds CPCL.

The Portable Range

• POS-8007 — this unit. 80 mm portable label, 72 mm print width, 20–80 mm paper, 2,600 mAh, TFT display.
• POS-8008 — 80 mm mini, ESC/POS, TSPL and CPCL, 30–72 mm paper, 2,000 mAh, cover-open alarm.
• POS-5816 — 58 mm portable label, 20–50 mm paper, 1,500 mAh, 350 g.
• POS-5811 — 58 mm portable receipt printer, 120 rolls per charge.

Frequently Asked Questions

How wide a label can it print?

72 mm print width on paper up to 80 mm wide. Standard 4-inch carton labels at 100 × 150 mm will not fit — this is a 3-inch mechanism.

Does it print Chinese characters?

Yes. GBK (16 × 16) and GB1830 (24 × 24) fonts are built in, so CJK text prints natively rather than as a bitmap.

How long does the battery last?

A session of a few hundred labels on a 2,600 mAh pack at 60 mm/s. It is not designed for continuous all-day printing.

Does it find the label gap automatically?

Yes — both label (gap) detection and black-mark detection are fitted.

Can it print receipts as well as labels?

Yes, ESC/POS is supported alongside TSPL, with continuous paper loaded.

What is the warranty?

12 months minimum, 50 km rated print head. OEM branding and packaging available.

Next step: tell us the label size and stock, the app or middleware that generates it, and the daily volume — we will confirm the configuration and quote factory-direct. Email sales@dcapos.com or contact us.

Related: POS-9250 110 mm label printer · thermal printers · POS-9210 desktop label printer · POS-5816 portable label printer · POS peripherals

Interfaces	USB (Type C)+Bluetooth
	Print Comand	TSPL /ESC/POS
	Print Method	Direct Line Thermal
	Print Speed	60mm/s
	Print Resolution	203dpi
	TPH Life	50km (25% printing density or less) or per dot: 100 million pulses
	Memory	ROM: 8192KB / DRAM: 8192KB
	Inner Code	ASCII font library (8×16, 12×24, 16×32, 24×48), GBK (16×16), GB1830 (24X24)
	Print content	English, Numbers, Various symbols, Chinese characters, Graphics, Curves, Pre-stored icons
	One-dimensional code	UPC / UPC-E / CODE39 / EAN-13 / EAN-8 / CODABAR / CODE128 / CODE93 / CODE128 / ITF
	Two-dimensional code	QR Code, PDF417
	Parameter settings	Printing parameters, Bluetooth parameters, other parameters, etc
	Black mark detection	YES
	Label detection	YES
	Status indication TFT display	Communication mode, Printing, Out of paper, Out of power, Sleep mode, Paper type
	Alarm function	Paper out detection, Low battery detection
	Paper
	Thermal Paper Types	continuous paper, label paper
	Available Rang of Paper Width	20-80mm
	Roll Diameter	φ≤50mm
	Available Printing Width	72mm (24 Chinese characters/line 48 English characters/line standard 24 dot matrix high font)
	Paper Thickness	0.06-0.20 mm
	Electrical
	Power Supply	AC 100-240v 50\60Hz 0.4A DC 5V 1A
	Li-Battery	DC7.4V/ 2600 mAh rechargeable lithium battery
	Package
	Printer Dimension	115*110*58mm
	Unit Weight	350g （with battery)
	Pieces Per CTN	40 Pieces
