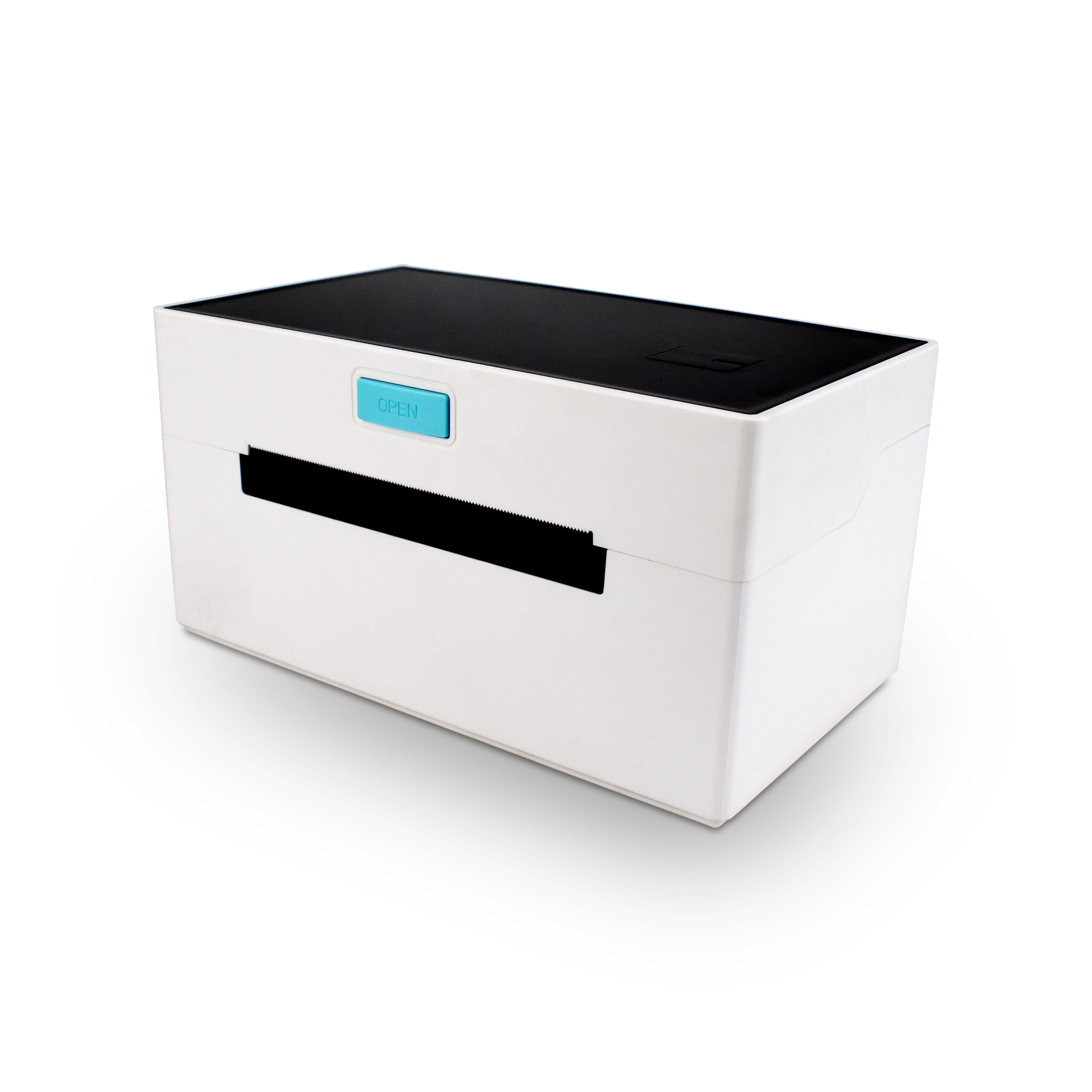

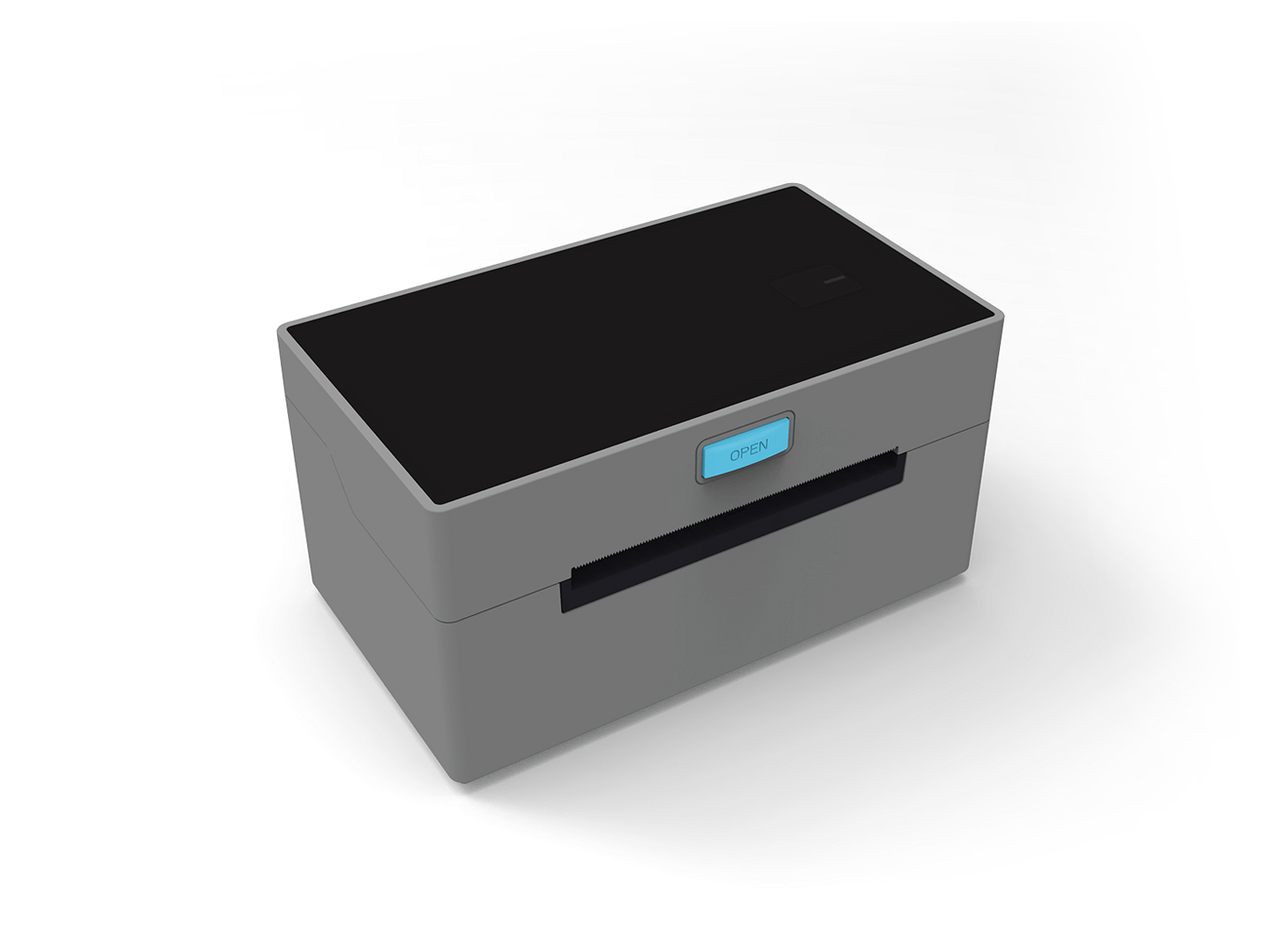

Thermal Label Printer POS-9220

Paper Return: The Feature That Saves Labels

On a label printer without a return mechanism, the label that has just been printed is pushed out to the tear bar and stays there. If nobody tears it off immediately, the next job starts printing with the previous label still in the path — and the alignment drifts, or the label feeds through unprinted.

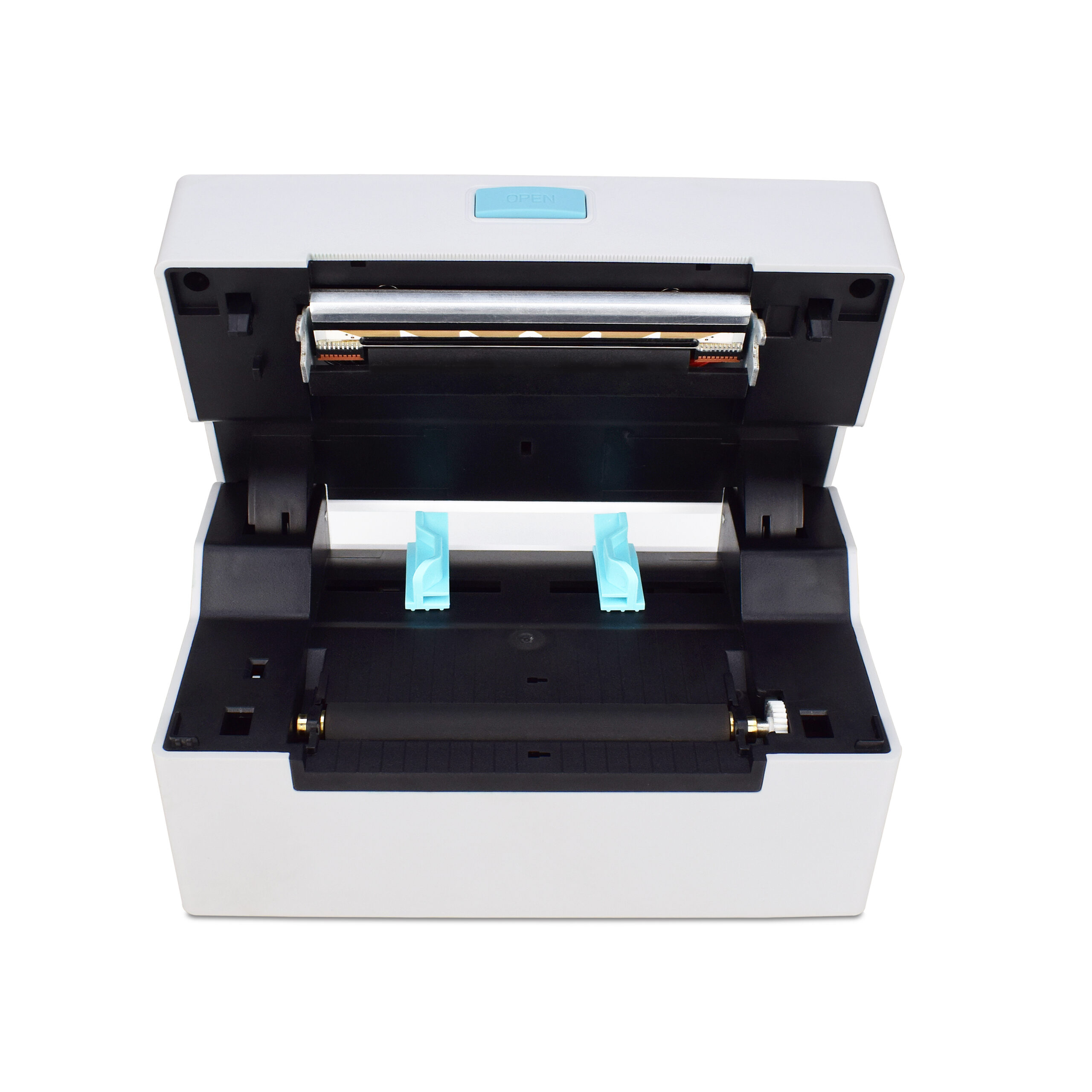

The POS-9220 has a paper return function: after printing, the mechanism retracts the stock so the leading edge sits back at the print head. Three things follow, and all three are practical.

• No wasted labels. A job that prints twice — a reprint, a mistaken send, a test — lands on the same label instead of consuming another one.
• No drift. The head always starts from a known position, so the hundredth label is aligned like the first.
• Clean tear-off. The stock is held under tension at the tear bar rather than lying loose, so the label separates cleanly instead of tearing at an angle.

On a busy packing bench where the printer is not watched continuously, that combination removes most of the small failures that make people distrust a label printer.

0.98 kg: A Desk Printer, Not a Bench Machine

At 0.98 kg and 200 × 115 × 110 mm, this is the lightest of the 4-inch units in the range — under a kilogram against 2 kg for the bracket-fed model. That is a different kind of device in use: it sits on a desk beside a laptop, it can be moved between a home office and a market stall, and it does not need a dedicated bench.

The constraint that comes with it is roll size: maximum roll is 110 × 100 mm (width × diameter), so it takes a standard 4-inch roll but not an oversized one. For a small seller printing a few dozen waybills a day that is not a limit; for a warehouse running hundreds, it means more roll changes, and the heavier units with an external bracket are the better answer.

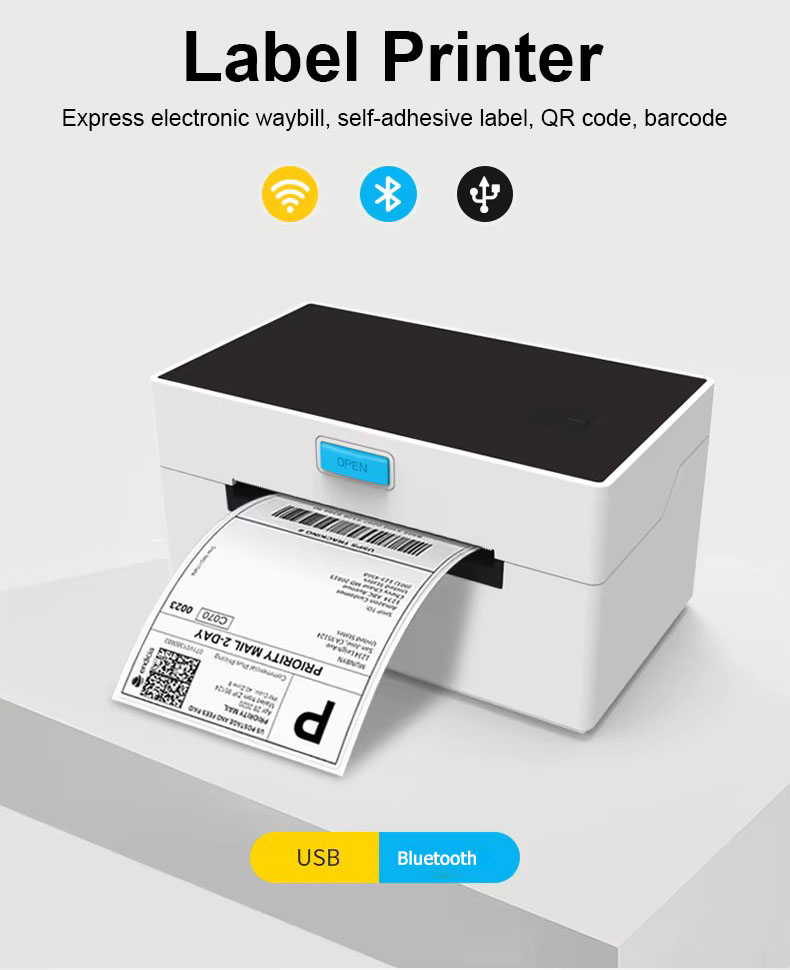

One Printer for Waybills and Product Labels

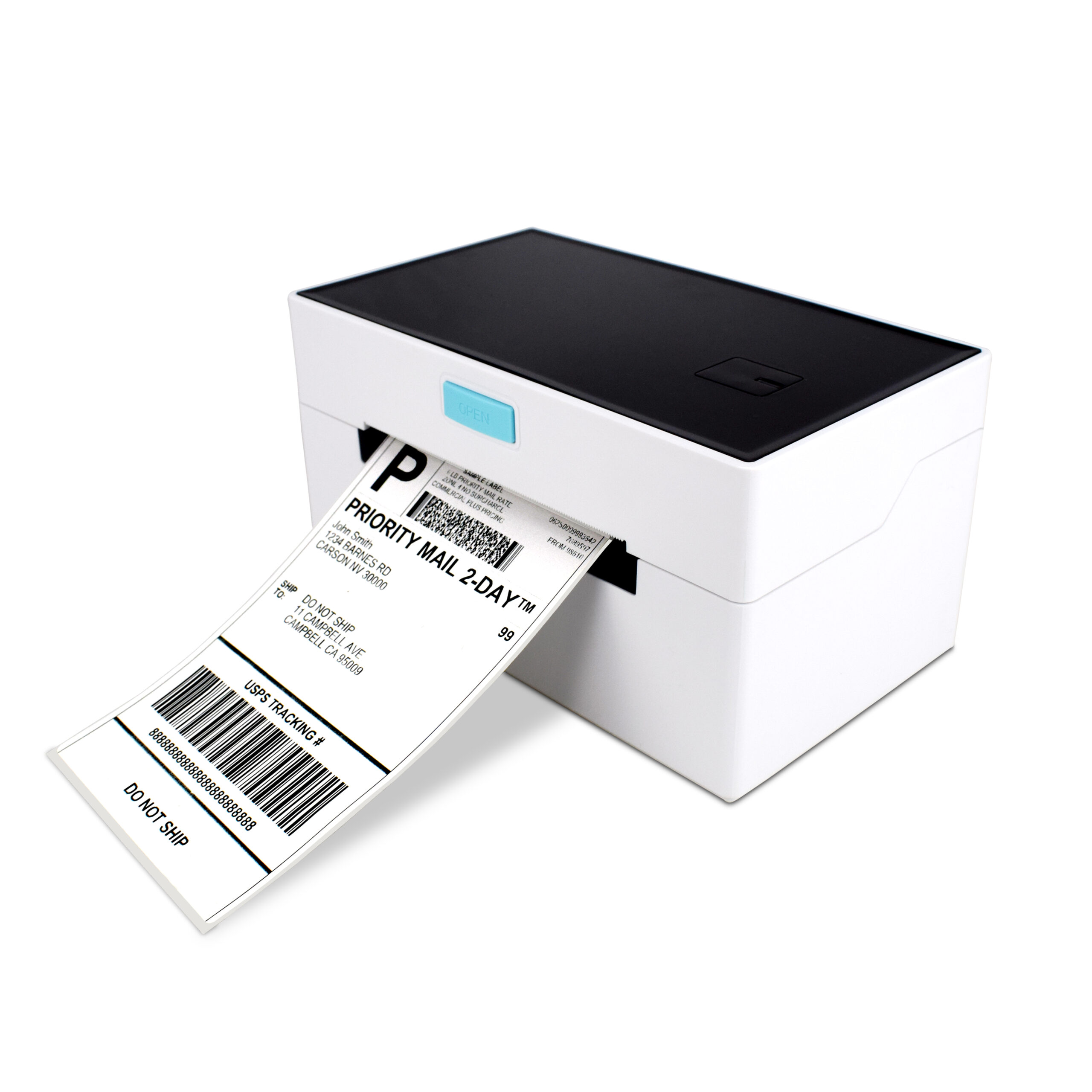

Print width is 104 mm (800 dots) on paper up to 110 ± 0.5 mm wide at 203 dpi — the standard 4-inch format that courier waybills use. Paper thickness runs 0.06–0.30 mm, and the media types supported are continuous paper, label paper, folded paper and tag paper.

Media sensing uses both transmissive and reflective sensors, which is what allows it to handle die-cut labels with gaps (transmissive, through the gap) and black-mark stock (reflective, off the printed mark). Having both means the printer is not tied to one supplier’s label format — relevant when a small business buys waybills from whichever courier offers the best rate.

Both native 1D and 2D symbologies are printed by the printer itself rather than as images: UPC-A/E, EAN-13/8, Code 39, ITF, Codabar, Code 93, Code 128, plus QR and PDF417. A natively generated barcode is dimensionally exact, which is the difference between a code that scans every time and one that scans most of the time.

Logo Download and the Command Set

The printer supports downloading a logo or trademark into its memory, so a branded label can be produced without sending the image with every job. For a seller whose labels carry a shop logo above the address block, that keeps the print job small and the output consistent regardless of which device sent it.

Command languages are CPCL, TSPL and ESC/POS — the three that between them cover Zebra-compatible applications, Windows label software and plain receipt output.

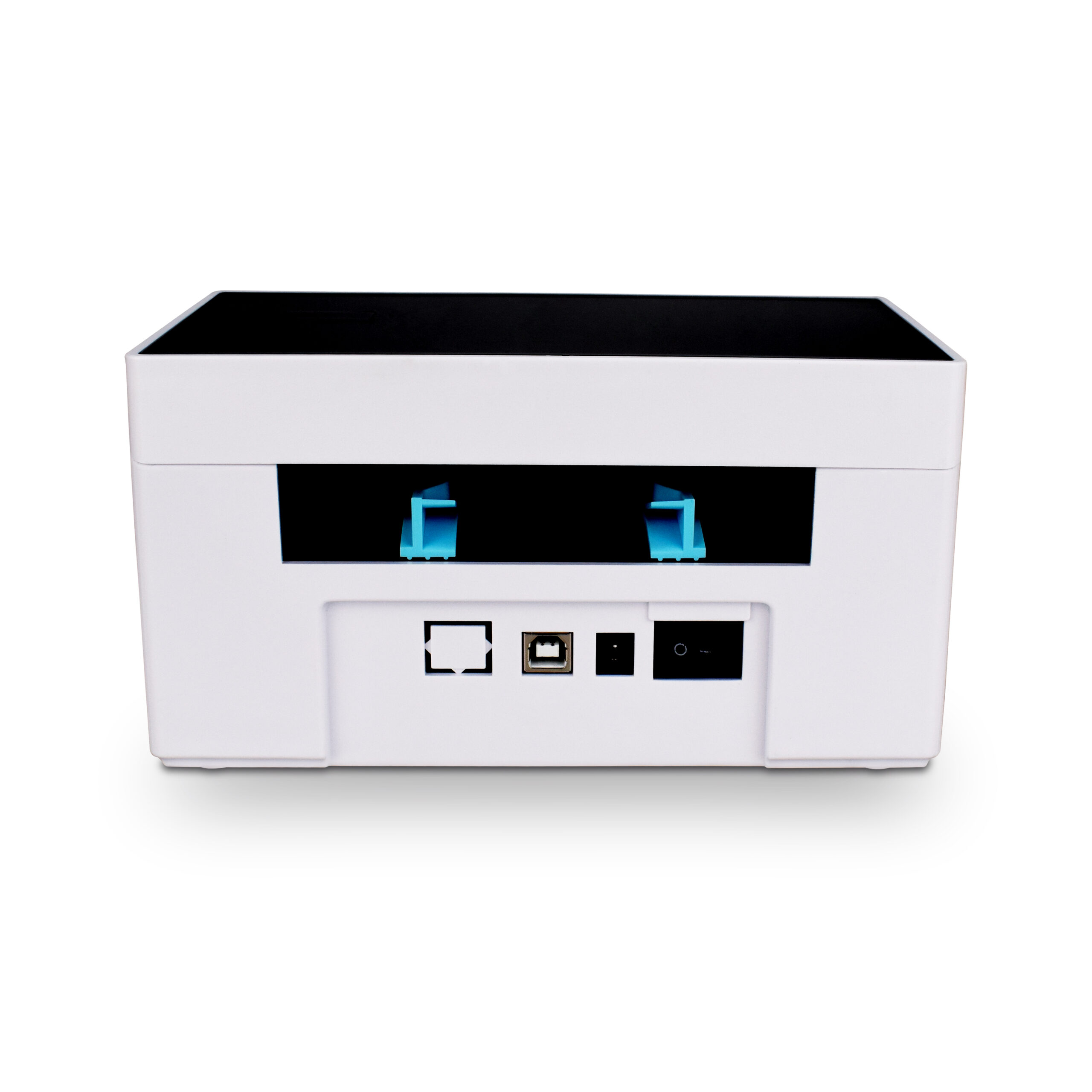

Drivers cover Windows 2003 through 10 and macOS, with iOS and Android supported through the vendor app over Bluetooth or Wi-Fi. Interfaces are USB, LAN, Bluetooth and Wi-Fi (optional).

Internal font support covers 11 font sizes, which is enough to build a waybill template without needing a font download — the address block, the reference numbers and the carrier name all fit in what is built in.

Noise, Power and Environment

Mechanical noise is specified under 60 dB(A) weighted RMS, normal for a thermal mechanism and quiet enough for a home office or a shop counter where the printer is beside the till.

Power is an external DC 24 V / 2.5 A adapter, with the adapter, power cable, USB cable, manual and paper stand in the box. Operating range is 0–50 °C at 20–85% RH non-condensing; storage −20 to 60 °C.

Packing is one per box at 23 × 19 × 17 cm (1.9 kg gross), eight boxes per carton at 47.5 × 39.5 × 35.5 cm, 16 kg.

Where the POS-9220 Fits

• Small sellers printing waybills at a desk. 0.98 kg, external adapter, compact footprint.
• Sites where reprints are common. Paper return means a reprint lands on the same label.
• Branded labels. Logo download into printer memory.
• Mixed label suppliers. Transmissive and reflective sensors together.
• Not for high daily volumes with large rolls. Maximum roll is 110 × 100 mm — the bracket-fed POS-9210 takes larger stock.
• Not for a production line. Desktop mechanism at 160 mm/s.

The 4-Inch Label Range

• POS-9220 — this unit. 0.98 kg, paper return function, logo download, 104 mm print width.
• POS-9210 — external bracket for two label stocks, dual-wall frame, 2 kg.
• POS-9250 — four sensors including black-mark and paper-exit, 25–100 mm print width, fan-fold support.
• POS-9200 — prints receipts as well as labels, 12 per carton.

Frequently Asked Questions

What does the paper return function do?

After printing, it retracts the stock so the leading edge sits at the print head. That prevents alignment drift, lets a reprint use the same label, and gives a clean tear-off.

Can it print from a phone?

Yes — iOS and Android are supported through the vendor app, over Bluetooth or Wi-Fi.

What is the largest roll it takes?

110 mm wide by 100 mm diameter. Standard 4-inch waybill rolls fit; oversized production rolls do not.

Does it read black-mark labels?

Yes — reflective sensing is fitted alongside transmissive gap sensing.

Can I print a shop logo on every label?

Yes. Download the logo into printer memory and call it from the label template.

What is the warranty?

12 months minimum. OEM branding and packaging are available for programme orders.

Next step: tell us the label format, the roll size you buy and whether you print from a PC or a phone — we will confirm the configuration and quote factory-direct. Email sales@dcapos.com or contact us.

Related: POS-8008 wireless label printer · thermal printers · POS-9210 label printer · POS-5890A 58mm printer · POS peripherals

	Interfaces	USB / LAN / Bluetooth /WIFI (optional)
	Print Comand	CPCL / TSPL command (ESC/POS command)
	Print Method	Direct Line Thermal
	Resolution	203DPI (8dot/mm)
	Print Speed	Max to 160mm/s
	Media Sensor	Transmissive and Reflective
	Inner Code	Supported 11 types font size
	Print parameters	Support to download the Logo trademark
	One-dimensional code	UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
	Two-dimensional code	QR CODE,PDF417
	Printer Driver	Win2003 / WinXP / Win7 / WIN8 / WIN10 / MACOS ; Support IOS / Android
	Paper
	Thermal Paper Types	continuous paper, label paper, folded paper, tag paper
	Max paper roll	110*100mm (width*diameter)
	Effective Print Width	104mm (Max 800 points)
	Available Max Paper Width	110 ± 0.5mm
	Paper Thickness	0.06-0.30 mm
	Package
	Printer Dimension	20*11.5*11cm
	Printer N.W.	0.98KG
	Package	1pc with accessories/box, 8 boxes/ctn
	Accessories	Manual, USB Cable, Adapter, Power Cable , Paper Stand
	Box Dimension	23*19*17CM
	Box G.W.	1.9Kgs
	CTN Dimension	47.5*39.5*35.5 cm
	CTN G.W.	16kgs
	Environmental
	Working Temperature	+0 ℃ ~ 50 ℃ (no condensation )
	Working Humidity	20% ~ 85% RH (no condensation )
	Storage Temperature	-20 ℃ ~ 60 ℃ (no condensation )
	Storage Humidity	5% ~ 95% RH (no condensation )
	Mechanical Noise	less than 60dB
