110mm Direct Thermal Label Printer POS-9250

110 mm is the family name for this 4-inch label class, not the width of the paper: the widest stock the POS-9250 takes is 104 mm, and it prints 100 mm of that. If the job needs a full 110 mm of stock, the POS-9220 is the model that takes it.

Four Sensors, and Why That Is the Specification That Matters

A label printer has to know where each label starts. If it gets that wrong, the print drifts: the first label is centred, the tenth is a millimetre low, and by the end of the roll the barcode has walked off the bottom edge. Nothing is broken and no error is shown — the output is just wrong.

The POS-9250 carries four sensors where most of this class carries one or two: a gap sensor, a black-mark sensor, a cover-opening sensor and a paper-exit sensor. Together they are what let the printer handle label stock that is not a plain die-cut roll.

What Each Sensor Does

• Gap sensor. Detects the space between die-cut labels. This is the standard mechanism for a normal roll of labels and the one that is present on every unit in this class.
• Black-mark sensor. Detects a printed black bar on the reverse of the stock. This is the one that matters, because black-mark stock is where cheap printers fail: a gap-sensor-only printer cannot find the mark, so it either feeds continuously or guesses at the label length. Black-mark labels are common on specific courier and customs stocks, on tag stock and on continuous label rolls that are not die-cut.
• Cover-opening sensor. Detects an open head assembly and stops the print. Without it, a printer with the cover open keeps feeding and leaves an unprinted label in the path, which is how a jam starts.
• Paper-exit sensor. Confirms the label actually left the mechanism. It catches the case where the label curls and sticks inside the exit, so the printer reports an error instead of printing the next job on top of a label that never came out.

For a site printing one label type from one supplier, one sensor is enough. The other three earn their place the moment the label stock changes — which, for a small business buying waybills from whichever courier is cheapest that quarter, is most of the time.

Effective Print Width 25–100 mm: The Narrow End Is the Useful Part

The print width range is 25–100 mm (800 dots maximum) on paper up to 104 mm wide. The 100 mm top end is the standard 4-inch format. The 25 mm bottom end is the interesting number.

A printer that only does 4-inch labels cannot produce a small product label, a shelf-edge label or a jewellery tag without wasting a 4-inch label per print. Narrow-width operation means the same device covers:

• Shipping waybills at 100 mm print width.
• Product and price labels at 30–50 mm.
• Small tags and asset labels down at 25 mm.

That range is what makes this unit a single-device answer for a small operation that ships parcels and also labels its own goods — rather than two printers, or a 4-inch printer and a lot of wasted label stock.

Paper Types: Fan-Fold and Punched Hole

The supported stock list is continuous, gap, black mark, fan-fold and punched hole. Two of those are unusual at this price point.

Fan-fold is the stack of continuous labels with perforations, rather than a roll. Courier waybill stock is often supplied this way, because a stack sits flat on a bench and does not need a holder or a spindle. A printer that only accepts rolls cannot use it.

Punched-hole stock — the tractor-feed style with holes down each edge — turns up in legacy logistics and inventory systems. It is increasingly rare, and the fact that this unit accepts it means it can replace a failing printer in an older workflow without changing the consumable.

Paper thickness is 0.06–0.30 mm, the full practical range from thin thermal receipt stock to thick tag material.

Print Engine and Physical

Direct line thermal at 203 dpi, 160 mm/s. The head is rated at 50 km (TPH life), which at a typical waybill length of 150 mm works out to something over 300,000 labels before the head reaches its rating — years of operation for a small shipper, and the reason the head is a wear part rather than a frequent replacement.

Command set is TSPL, CPCL and ESC/POS, so the printer works with label design software, Zebra-compatible applications and plain receipt output. Drivers cover Windows and macOS, with iOS and Android supported through the vendor app.

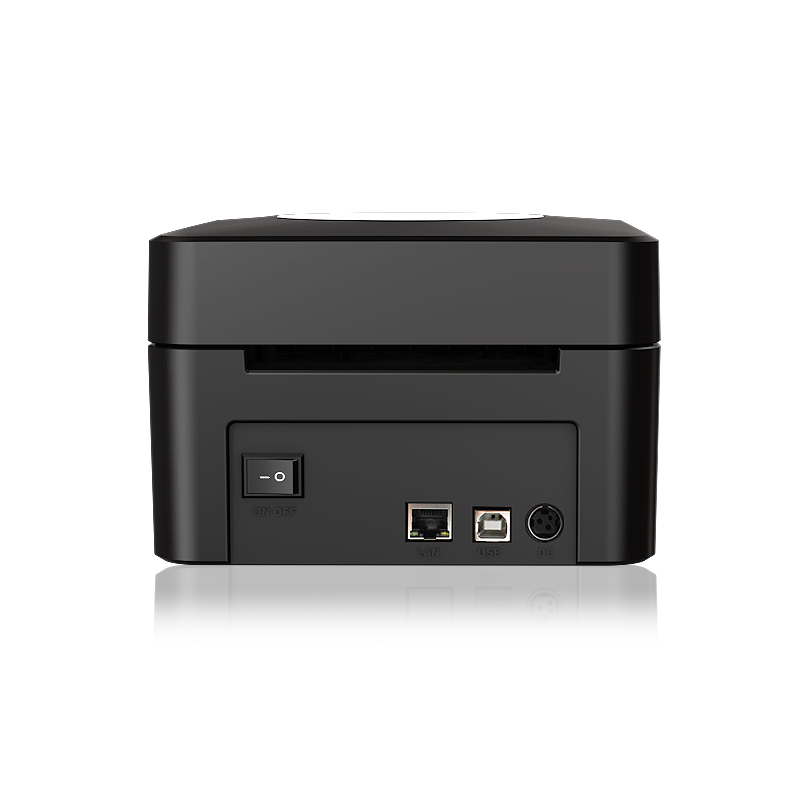

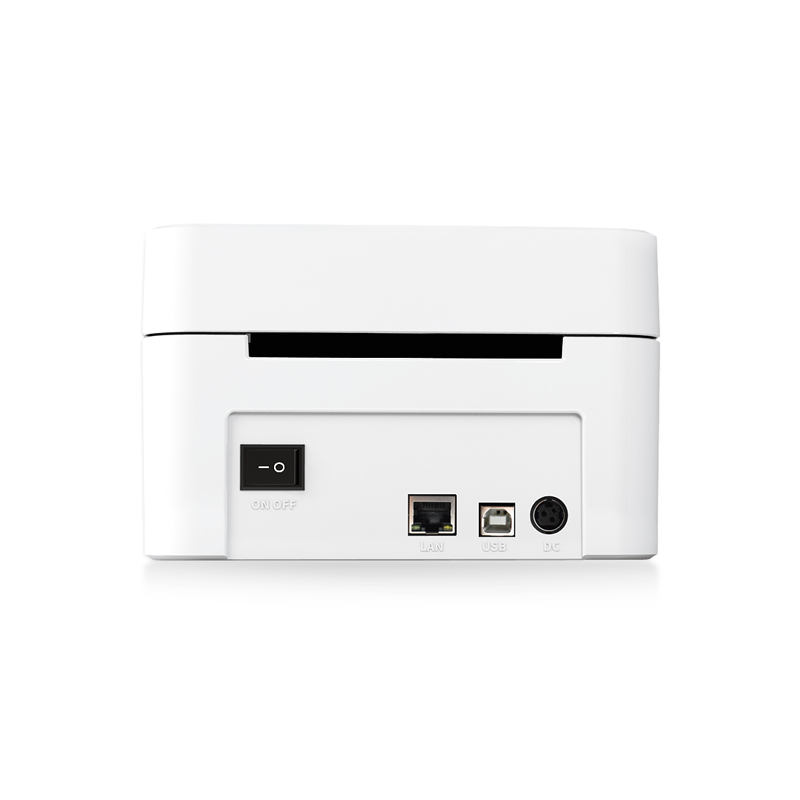

Interfaces are USB, LAN, Bluetooth and Wi-Fi (optional). The unit is 215 × 180 × 115 mm, eight to a carton at 51 × 48 × 29.5 cm, 15 kg gross — the lightest carton in this range, which matters for a distributor buying in quantity.

Power is DC 24 V / 2.5 A from a 100–240 V adapter.

Where the POS-9250 Fits

• Mixed label stock. Gap, black-mark, fan-fold and punched-hole stock all read correctly.
• Courier waybills supplied as fan-fold. Flat stacks on a bench, no holder needed.
• One printer for shipping and product labels. 25–100 mm print width.
• Distributor and OEM orders. The lightest carton of the four 4-inch units.
• Not for high-volume production lines. Desktop mechanism at 160 mm/s.
• Not for colour or photographic output. Direct thermal, single colour, 203 dpi.

The 4-Inch Label Range

• POS-9250 — this unit. Four sensors, 25–100 mm print width, fan-fold and punched-hole support, 8 per carton at 15 kg.
• POS-9210 — external bracket paper holder for two label stocks, dual-wall frame, 2 kg.
• POS-9220 — 0.98 kg, paper return function, logo download.
• POS-9200 — prints receipts as well as labels, 12 per carton.

Frequently Asked Questions

Will it read black-mark labels?

Yes — a dedicated black-mark sensor is fitted, alongside the gap sensor. This is the main reason to choose this model over a gap-only printer.

Can it take fan-fold waybill stock?

Yes. Fan-fold and punched-hole stock are both in the supported media list.

What is the narrowest label it prints?

25 mm effective print width, on paper up to 104 mm wide.

Does it need a ribbon?

No. Direct thermal — the heat from the head activates the coating on the label stock.

Does it work with shipping platforms?

It accepts TSPL, CPCL and ESC/POS, which covers most label design and shipping software. Check the platform’s command language if it names a specific one.

What is the warranty?

12 months minimum, 50 km rated print head. OEM branding and packaging available.

Next step: tell us the label stock (die-cut, black-mark, fan-fold), the width range and the software you print from — we will confirm the configuration and quote factory-direct. Email sales@dcapos.com or contact us.

Related: thermal printers · POS-9210 label printer · POS-8250 receipt printer · POS peripherals

Interfaces	USB / LAN / Bluetooth /WIFI (optional)
	Print Command	TSPL /CPCL/ESC/POS
	Print Method	Direct Line Thermal
	Print Speed	160mm/sec
	Resolution	203DPI
	TPH Life	50KM
	Sensors	Gap sensor / Cover opening sensor / Black mark sensor / Paper exit sensor
	Printer Driver	Windows / MAC OS ; Support IOS / Android
	Paper
	Thermal Paper Types	Continuous, gap, black mark, fan-fold and punched hole
	Effective Print Width	25-100 mm
	Available Paper Width	104 mm （MAX)
	Paper Thickness	0.06-0.30 mm
	Electrical
	Input	AC 100-240V, 50-60Hz
	Output	DC 24V / 2.5A
	Package
	Printer Dimension	215*180*115mm
	Pieces Per CTN	8 Pieces
	CTN Dimension	51 x 48 x 29.5 cm
	Gross Weight	15kgs
