How a Touch Screen POS System Is Manufactured: Lamination, Calibration and Aging

A touch terminal is a stack of five layers squeezed into 5 mm. Whether it survives three years on a counter is decided at lamination, at calibration, and in the aging oven.

A touch screen POS terminal fails for reasons that are mostly settled before the electronics are even powered on. The bill of materials sets the ceiling on how good the display can be. Three stations decide what you actually receive: the lamination cell, the touch calibration bench and the aging oven.

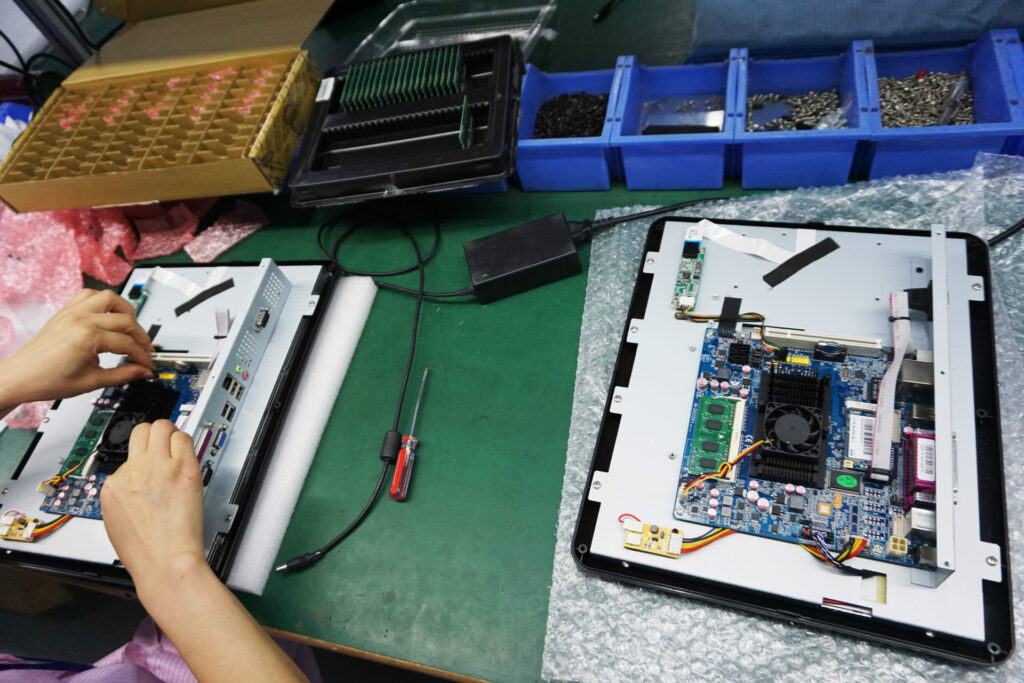

This is not the usual twelve-stage narrative from concept to mass production. It is what happens to the display assembly between the moment the panel arrives in a tray and the moment the finished head unit goes into a carton — because that is where the yield is lost, and where the failures you see in year two were actually manufactured.

The stack, from the outside in

A 15.6-inch touch terminal has five functional layers in about five millimetres. Each one has a tolerance, and the tolerances add up in a way that decides whether the screen can be read at an angle in daylight.

Layer Typical thickness What it decides
Cover glass, chemically strengthened 1.1 mm Scratch resistance, drop survival, how much pressure reaches the sensor
Adhesive or air gap 0.10 mm bonded / 0.8–1.0 mm air Reflectance, parallax, whether dust can get in
Touch sensor 0.7 mm glass, or 2 × 0.125 mm film Report rate, edge linearity, multi-touch count
LCD cell 1.0 mm Resolution, viewing angle, native contrast
Backlight and light guide 1.6 mm Brightness, uniformity, and how the unit looks in three years

The first three are chosen by the terminal maker. The last two are chosen by the panel supplier, and they are the two the buyer can only judge by looking at a unit in the light it will actually be used in.

Full lamination, and the millimetre it removes

Frame lamination — the cheap method — sticks the cover glass to the display frame with a double-sided tape around the perimeter and leaves an air gap over the active area. Full lamination fills that gap with an optical adhesive, so the only refractive interfaces left are the outside of the cover glass and the inside of the LCD.

Each glass-to-air interface reflects about 4% of the light that hits it. In a frame-laminated assembly there are four of them between the room and the liquid crystal; in a fully laminated one there is effectively one. That is the difference between a screen that goes grey when a window is behind the cashier and one that stays readable.

Property Frame lamination Full lamination
Total stack thickness 5.3–5.5 mm 4.3–4.5 mm
Reflected light Roughly 8–10% of incident Roughly 2–3%
Contrast under a bright window Washed out at 150 cd/m² Readable at the same brightness
Dust Enters the gap at the border, visible within a year Sealed; no path into the active area
Parallax at 45 degrees Visible offset between finger and target Under a millimetre
Rework Cover glass can be replaced Whole assembly is scrapped
Cost Baseline Adds roughly 8–15% to the display assembly

The hidden cost of the cheap option

A frame-laminated screen with dust in the gap cannot be cleaned. The dust sits on the inside of the cover glass, the customer reads it as a dirty screen, and the only fix is a new display assembly — which costs more than the difference you saved at purchase.

There is a legitimate use for the air gap: back-of-house displays. A kitchen display hangs at 2.1 metres in a room with no window and no customer, and nobody has ever complained about the reflectance of a KDS.

OCA sheet or liquid OCR

Full lamination is done with one of two adhesives, and they fail differently. An OCA sheet is a precut film of optically clear adhesive, applied under vacuum and then cured in an autoclave at around 0.5 MPa and 50 °C for 40 to 60 minutes. The pressure is what collapses the last bubbles. A bubble of 0.05 mm is invisible on a white screen and shows as a white dot on a black one, which is exactly what a POS shows at night.

Liquid OCR is dispensed, pressed and cured with ultraviolet light. It handles large panels and slight curvature better, and it needs no autoclave. It is also harder to keep at a uniform thickness, and the cured resin can yellow under sustained UV — a real consideration for a terminal that faces a shop window for six hours a day.

Either way, the enemy is particulate. Lamination happens in a controlled cell, not on the assembly line, because one fibre on the sensor is a permanent defect that no amount of testing will remove. This is the single most capital-intensive step in display assembly, and it is also the step a trading company cannot fake: if a supplier cannot describe their lamination cell, they are buying finished display assemblies from someone who has one.

The sensor: glass or film, and what it changes

A glass-on-glass sensor (G+G) has the indium tin oxide layer deposited on a glass substrate. A film sensor (G+F+F) uses two layers of PET. Both work. The difference shows up at the edges of the panel and in how the controller behaves when the cover glass is thick.

Item G+G sensor G+F+F sensor
Sheet resistance of the ITO Lower Higher, so the controller needs longer to integrate each frame
Edge linearity Good without heavy compensation Needs per-unit compensation at the border
Thickness and weight Heavier Thinner, which helps a flush bezel
Cost Higher Lower
Typical use Countertop terminals and kiosks Handhelds and thin bezel designs

The parameter that gets sold hardest — ten-point multi-touch — is worth nothing on a till. A cashier uses one finger, sometimes two. What matters instead is whether the panel still reads a tap through 1.1 mm of cover glass with a wet finger, and whether a splash of water on the surface registers as a phantom touch. Water rejection is a firmware feature, not a hardware one, and it is the first thing to test with a wet cloth in your hand.

Calibration belongs to the panel batch, not the model

Every panel batch has a slightly different capacitance baseline, because the ITO thickness, the adhesive thickness and the cover glass dielectric constant all vary within tolerance. The touch controller firmware carries a parameter set — sensitivity, noise threshold, edge compensation — that is written for one specific stack.

This is why a replacement panel of the same size and the same resolution is not interchangeable. If the new panel comes from a batch with a 0.7 mm cover glass and the firmware was calibrated for 1.1 mm, the controller over-compensates for a dielectric that is no longer there. The symptom is consistent and recognisable: taps land three to five millimetres from where the finger went, always in the same direction, and the error grows towards the edges.

The repair that creates a new fault

A screen replaced without re-flashing the matching touch firmware passes a functional test — every button responds — and fails in use, because the cashier has to aim. Ask any service partner whether they flash touch parameters after a panel swap. The ones who look puzzled are the ones who will hand you a terminal with a five millimetre offset.

The same logic explains why the display assembly, the touch firmware and the bracket are a single spare part rather than three. Any vendor quoting a panel as a standalone spare is quoting you a repair that will come back.

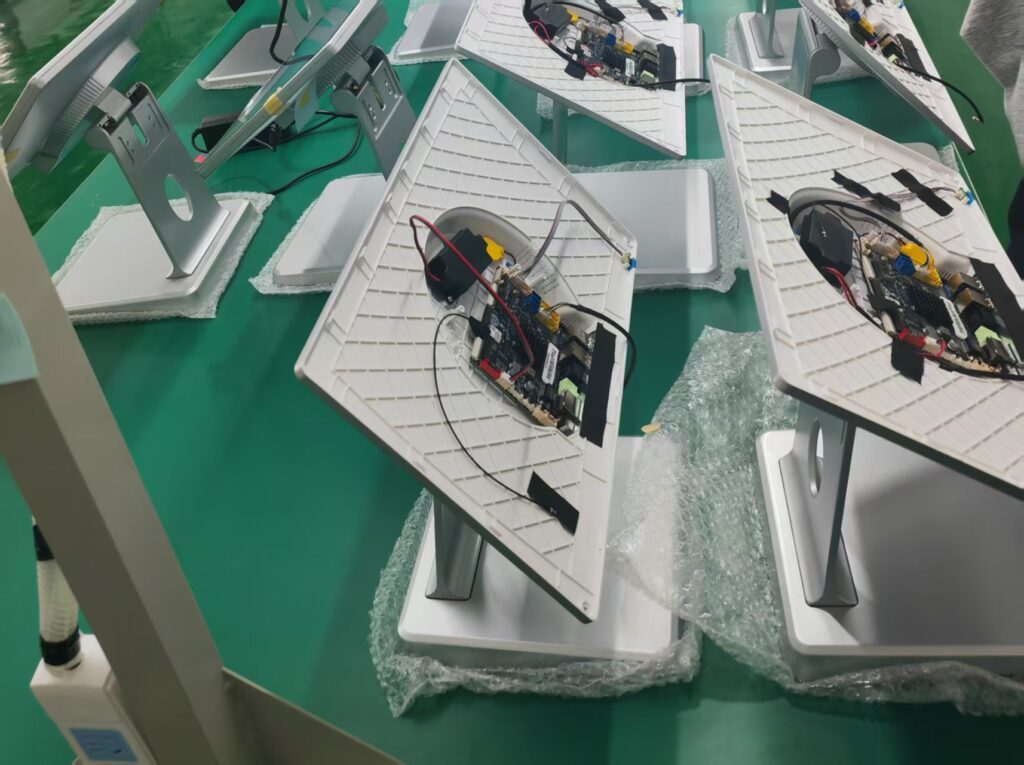

Aging finds the connector, not the panel

After assembly, the head unit goes into an aging oven: 48 hours at 60 °C and 90% relative humidity is a common specification, sometimes run as thermal shock instead — twenty cycles between −10 and 60 °C with a short dwell at each end.

The purpose is not to prove the panel works. The panel worked when it was inspected. The purpose is to make the weak joints fail in the factory rather than in month two. Heat cycling opens a cold solder joint on the backlight connector, and the backlight connector is the most common display failure in the field by a wide margin: the symptom is a screen that is dark until the unit warms up, or a strip of the panel that dims when the case is tapped.

Aging also exposes three things that a five-minute inspection cannot: mura, which is non-uniform brightness that appears only after the light guide has been at temperature; delamination, where the adhesive lifts from the border after humidity; and edge light leak, where the backlight escapes past the frame. All three are cosmetic problems that a customer reads as a defective product, and none of them can be repaired after the unit is sealed.

A yield of 0.5 to 2% failing aging is normal and healthy. A supplier reporting zero failures across a thousand units is not running the oven, or is not counting what comes out of it.

What to ask before you accept a sample

  • Which lamination, and by whom. Full or frame, OCA or OCR, and is the display assembly laminated in-house or bought finished.
  • Cover glass thickness and strengthening. 1.1 mm chemically strengthened is the commercial baseline; 0.7 mm without strengthening is a scratch waiting to happen.
  • The touch parameter table. Is there a per-batch firmware file, and does the service procedure require flashing it after a panel swap.
  • Aging duration and pass criteria. How long, at what temperature and humidity, and what is inspected on the way out.
  • Panel part number and its lifecycle status. A panel that is already end-of-life at design time becomes a spare parts problem in year three.

None of these appear on a datasheet, and all five are answerable in a single factory visit by someone who has seen a lamination cell before.

FAQ

Is full lamination worth the extra cost?

For anything a customer looks at, yes. The gain is contrast under ambient light, and the cost is 8 to 15% of the display assembly — a fraction of the terminal. For a kitchen display in a windowless room, the air gap is fine and the money is better spent on brightness.

Why does my terminal register touches when there is water on the screen?

A drop of water bridges the capacitance between two sensor nodes and reads as a touch. Water rejection is handled in the touch controller firmware, by ignoring contacts that spread beyond a plausible finger size. If it is not enabled, a wet cloth wipe will open menus.

Can a scratched cover glass be polished out?

On a frame-laminated assembly sometimes, at the cost of the anti-glare coating. On a fully laminated one, no: polishing heat and slurry reach the adhesive. The assembly is replaced, which is why the cover glass specification matters more than it looks.

Where to go next

The display is the part of a terminal that customers judge and the part that is hardest to repair, so it is worth asking about the lamination cell before asking about the processor:

DCA-155A 15.6-inch Android terminal DCA-156A aluminium bezel DCA-1701 touch monitor, 7 to 21.5 inch Android POS systems what to look for in a countertop terminal how the batch is controlled after assembly · the footprint cost of an all-in-one · fanless mini PCs for kiosks and shop floors · Android against Windows at the counter

Specifying the hardware? The hardware side is covered in The five lines on a POS bill — which of them are hardware and which are not.
