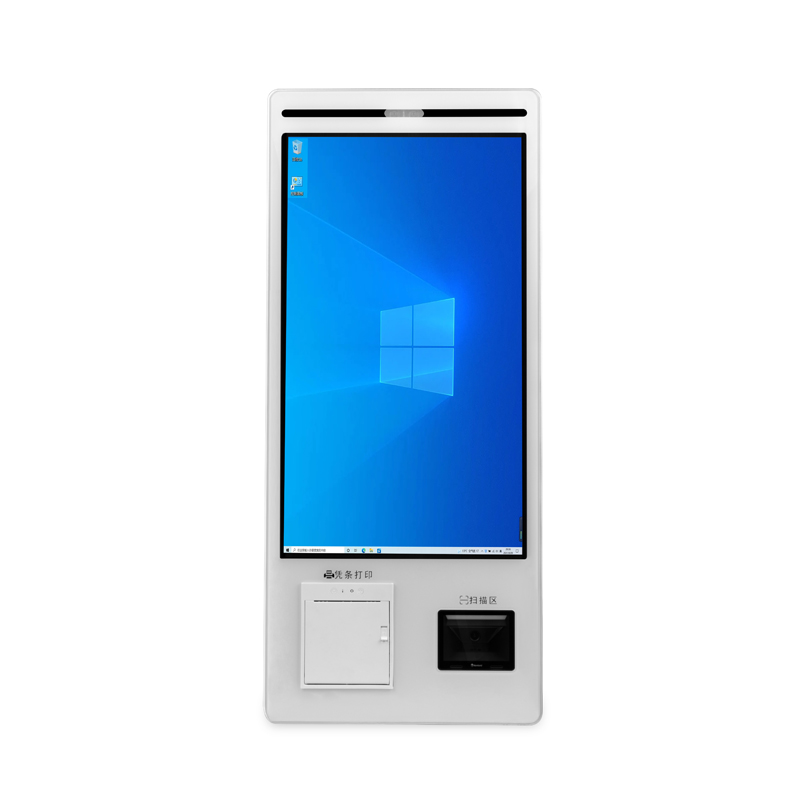

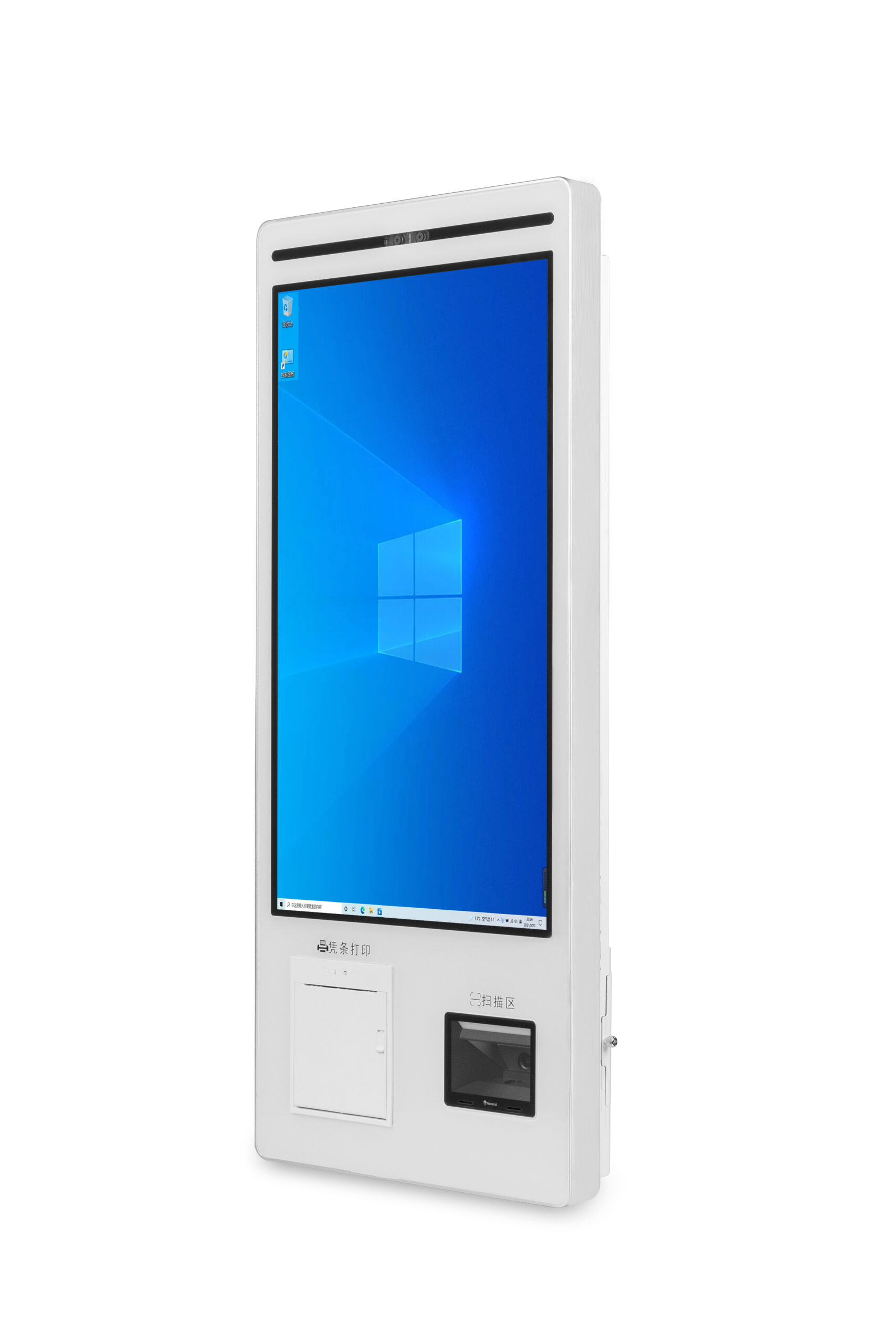

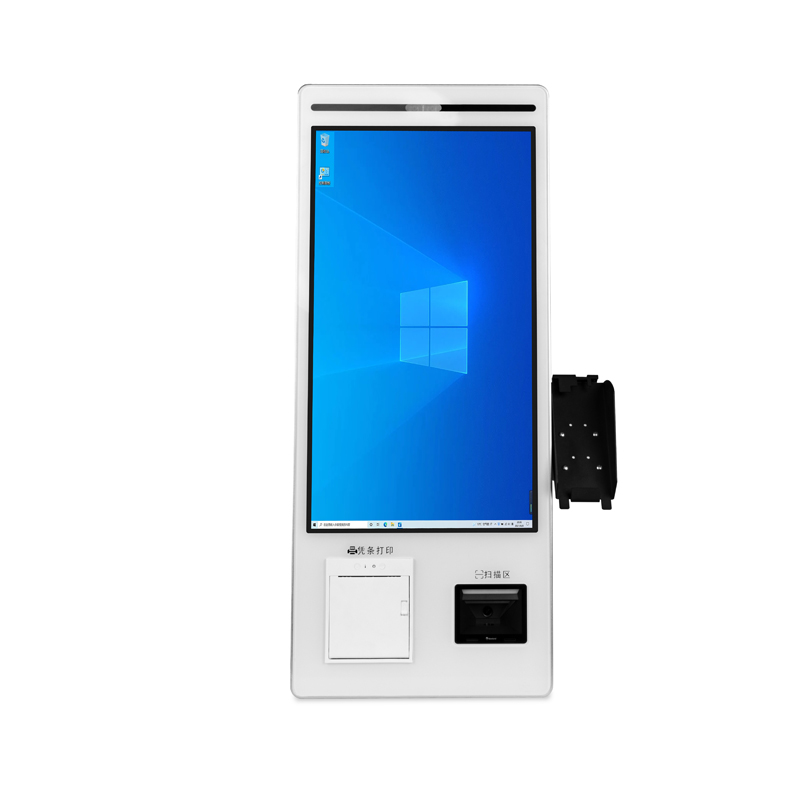

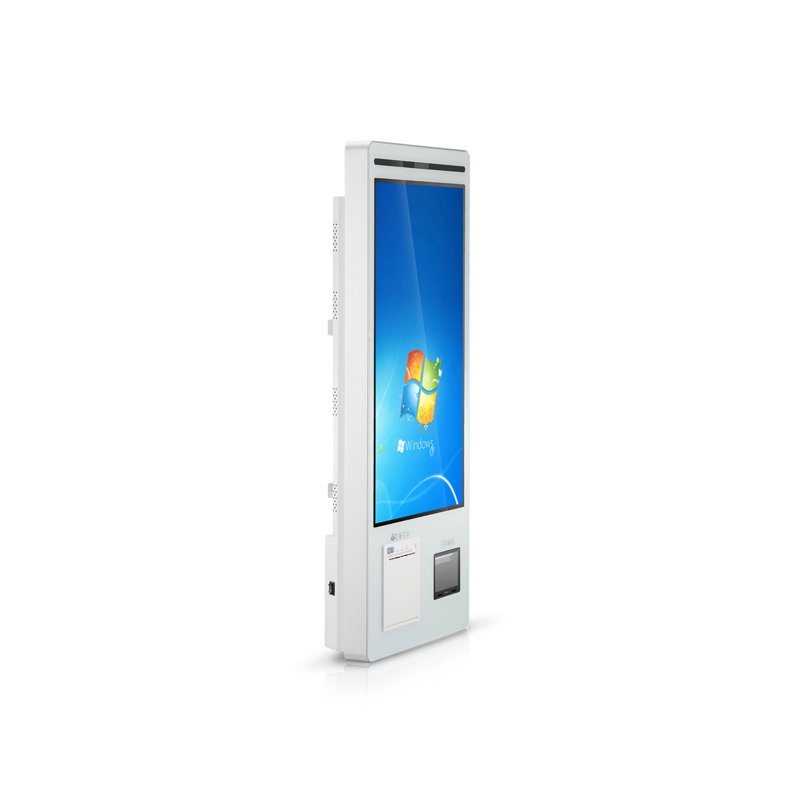

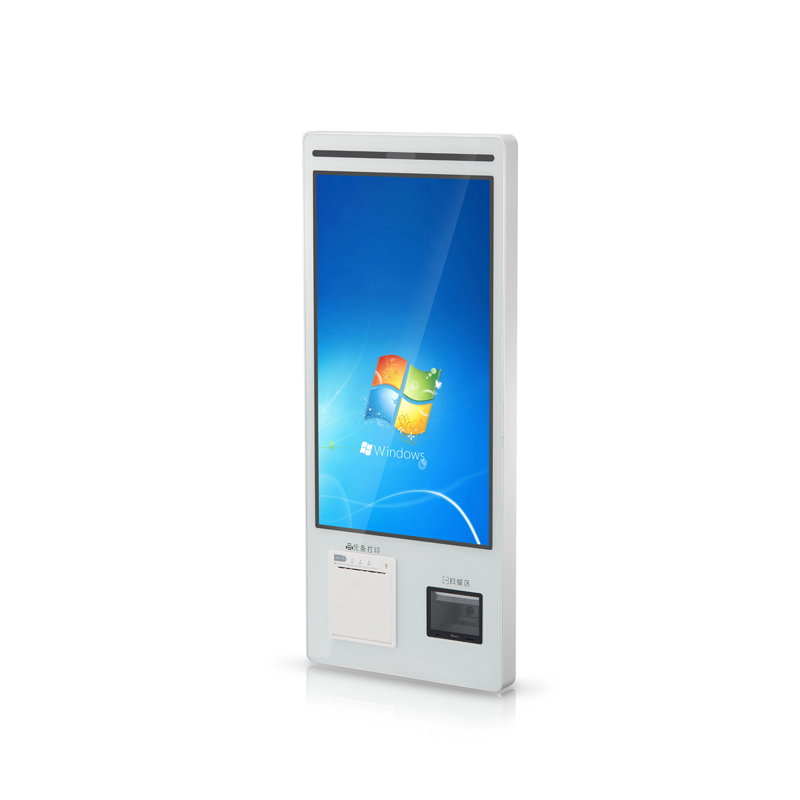

Self Service Kiosk Z Series
We empower you to define the exact internal specifications – from processors and memory to storage and I/O ports – ensuring the hardware perfectly aligns with your software requirements and performance targets.
Select the ideal display dimension to suit diverse applications and environments. Whether for compact self-service points or large-format interactive experiences, a range of screen sizes is available to meet your project’s scope.

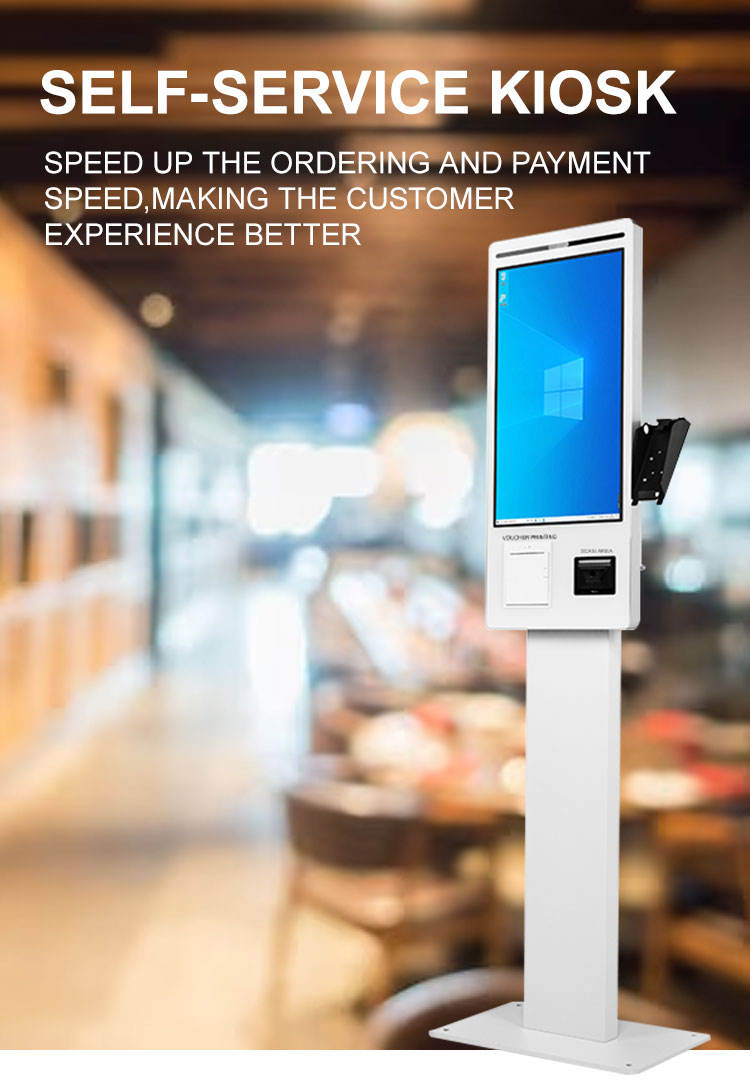

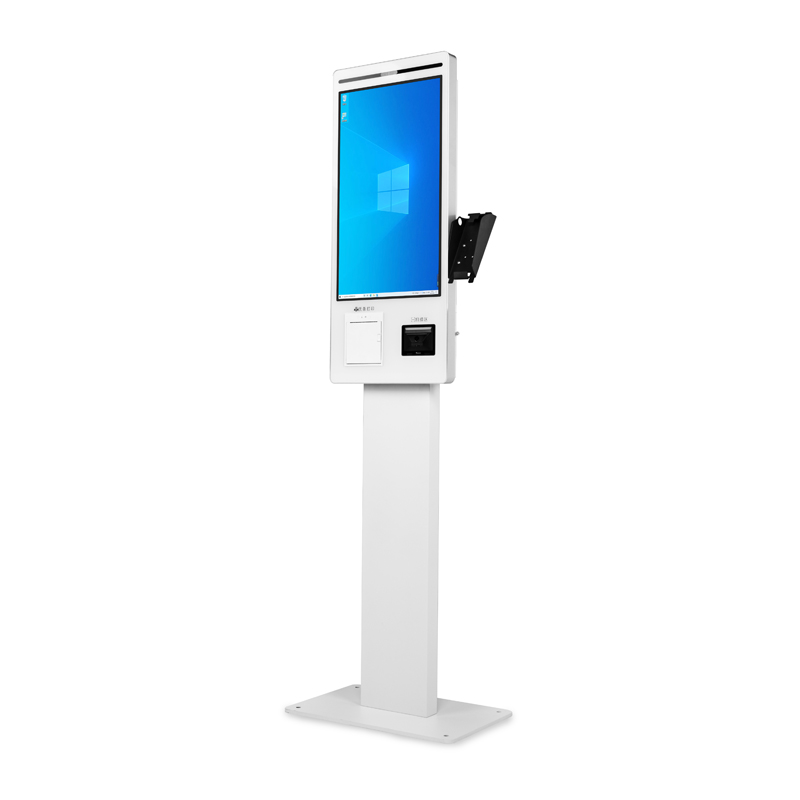

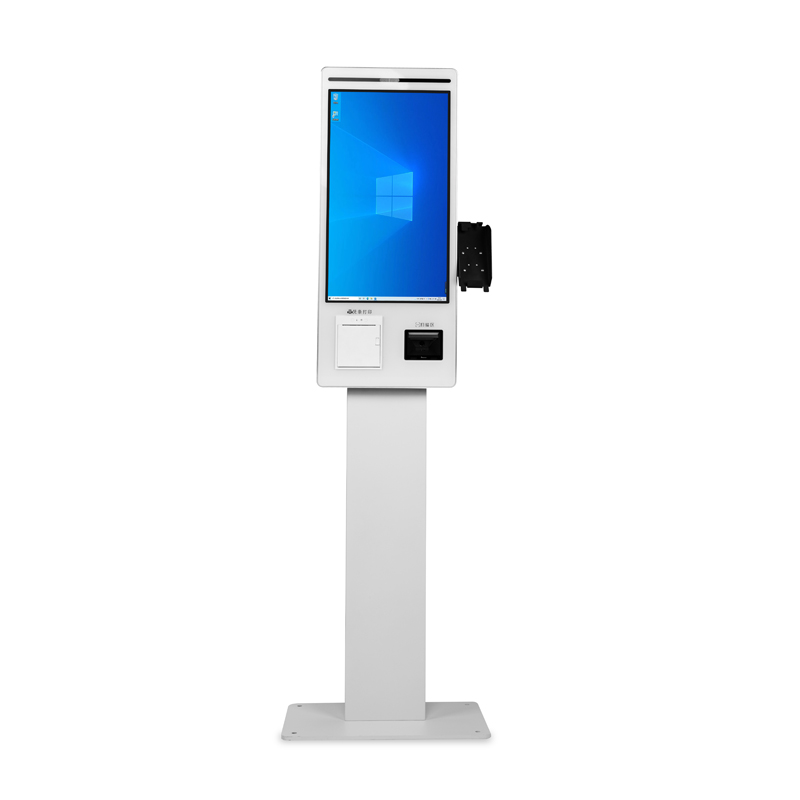

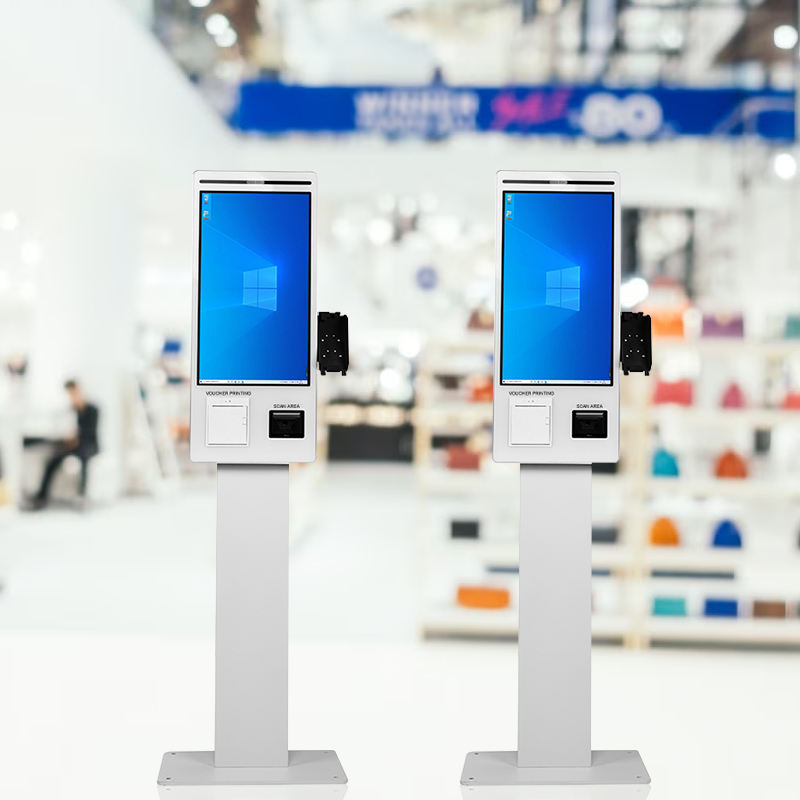

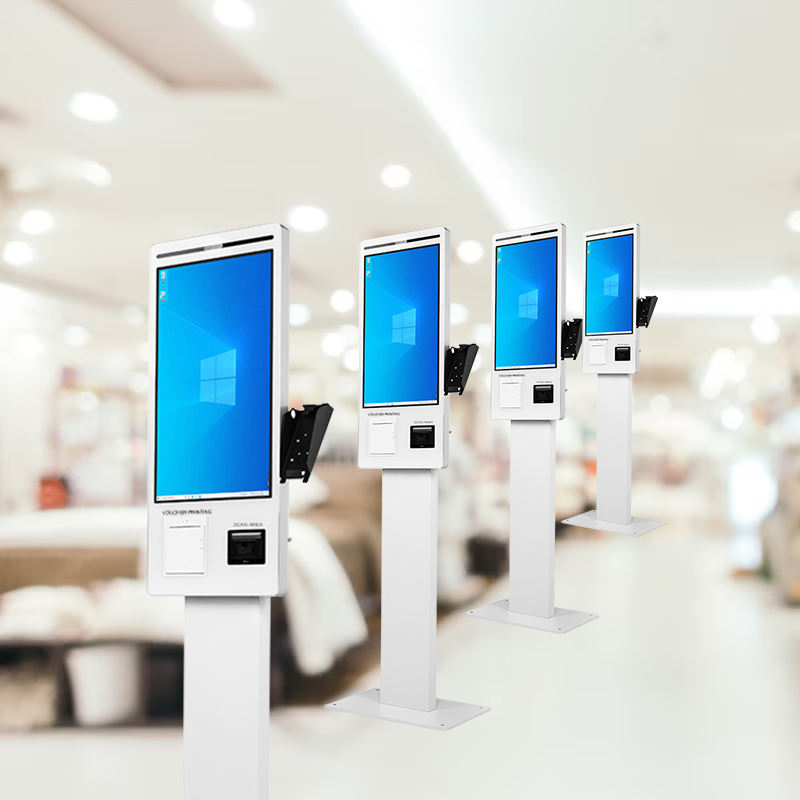

Our hardware is designed for versatile deployment. Choose from wall-mounting for space efficiency, desktop placement for counter convenience, or a robust floor-standing option (utilizing an add-on base) for prominent, accessible installations.
As your dedicated OEM/ODM partner, we offer extensive customization of the device’s external appearance. Specify enclosure colors, incorporate your branding, and let us tailor the aesthetic design to perfectly match your corporate identity or specific client requirements.
Windows POS
Self Service Kiosk
Touch Screen Monitor
Handheld POS Terminal
If you want more information of our industry and products,please contact us.
Get to Know Us Now
|
Model
|
DCA-Z
|
|
Optional Colors
|
White
|
|
CPU
|
Core I5 4th generation Optional : Celeron J1900 , Core I3 , CORE I5, CORE I7
|
|
Memory Support
|
8GB Optional 4GB, 8GB 16GB DDR4
|
|
Hard Driver
|
SSD 256GB Optional:64GB (default), SSD 128GB, 256GB HDD 500GB, 1T optional
|
|
LCD panel Size
|
23.8 inch optional : 21.5/24/27/32 inch FHD LCD panel
|
|
Contrast ratio
|
1200:1
|
|
Visual Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
|
Reaction time
|
5ms
|
|
Panel life
|
For 50,000 hours
|
|
Brightness
|
300cd/m2
|
|
Resolution
|
1920*1080 2K 16:9
|
|
Touch Screen
|
10 points projected capacitive touch panel
|
|
Material
|
Metal shell+tempered glass
|
|
Surface
|
Spray paint
|
|
Antenna
|
builded in
|
|
Install way
|
wall mount
|
|
Height
|
Adjustable
|
|
I/O interface
|
USB*4
|
|
LAN: RJ45*1
|
|
|
POWER interface*1
|
|
|
WIFI
|
|
|
Operating temperature
|
0 to 50°C
|
|
Storage temperature
|
-10 to 60°C
|
|
Warranty
|
One year
|
|
Weight
|
NET: 13KG Gross :15kg
|
|
Carton size
|
87.5*19.5*42.5cm
|
|
Operating system
|
Win 10 opentional: Windows 7/8/10, Ubuntu, Linux
|
|
Power adapter
|
DC:12V-8A AC:110V-220V
|
|
Barcode scanner
|
2D barcode scanner(can read 1d and 2d barcode both)
Cmos: 640×480 CMOS 120FPS 1D barcode: Interleaved 2 of 5, ISBN, Code 93, Code 11,UCC/EAN-128 GS1 Databar, Matrix 2 of 5, Industrial 2 of 5,Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Standard 2 of 5, MSI-Plessey,GS1 composite code 2D barcode:PDF417, Data Matrix, QR Code Voltage and currenct: 5V 260mA Reading accuracy: 4mil barcode |
|
Pirnter
|
80MM thermal receipt printer with auto cutter max printing speed 150mm/s
58mm and 80mm paper both ok working life of printing:50KM Paper loading: loading in front Dpi:203PDI |
|
Space for POS machine
|
Yes
|
|
Camera
|
Optional
Pixel: 2 megapixels 1920*1080fhd Output format:YUV/MJPEG.H.264 camera white balance:automatic |
|
Mobile communication module
|
Optional
frequency band:FDD LTE: B1/B3/B8 TDD LTE: B38/B39/B40/B41 TDSCDMA: B34/B39 WCDMA: B1/B8CDMA 1x/EVDO: BC0GSM: 900/1800 |
|
Card reader
|
Optional IC/ID card reader
|
