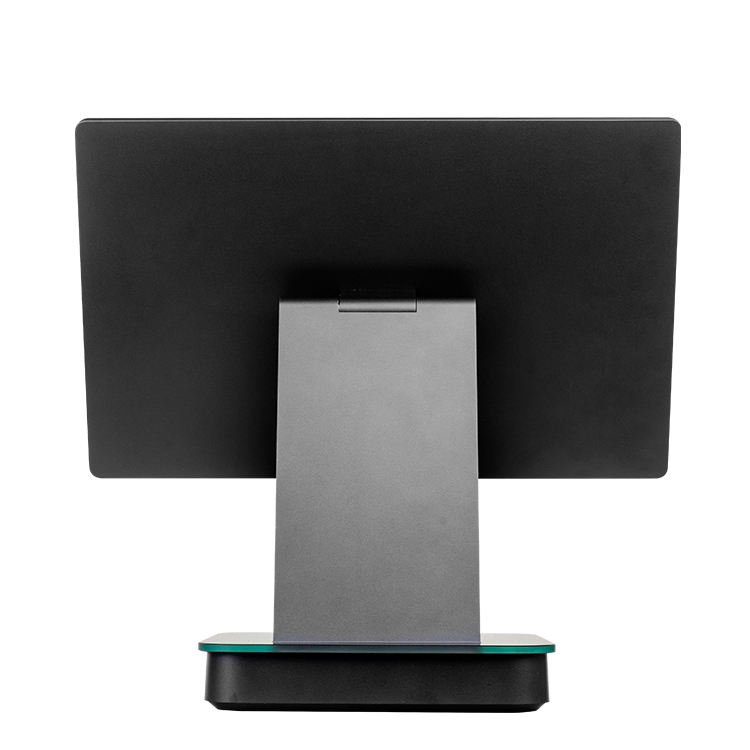

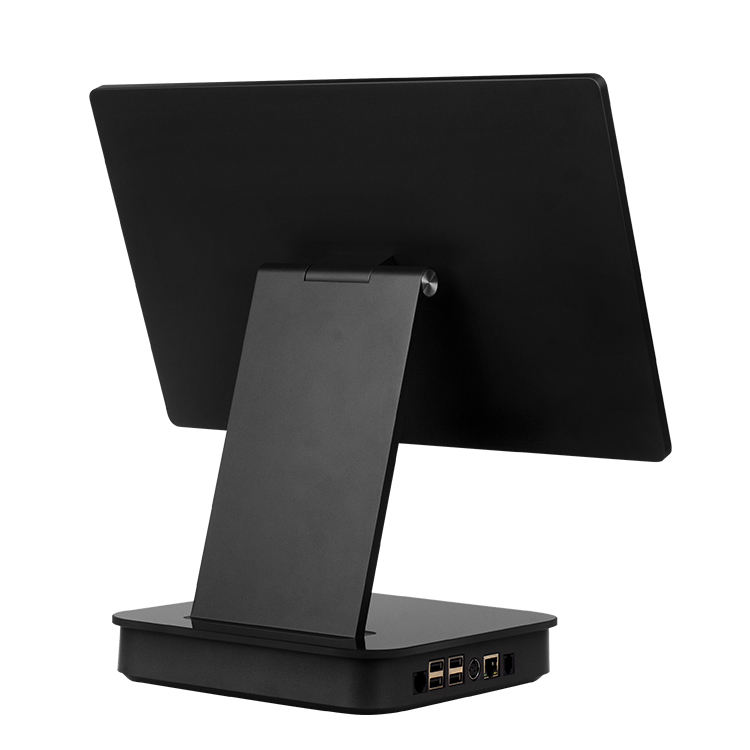

15.6 Inch Bezel Aluminum Case Android POS Terminal DCA-156A

15.6 Inch Touchscreen POS Terminal Retail POS System Android 11 OS Slim Aluminum Design

✅ Premium Build & Durability

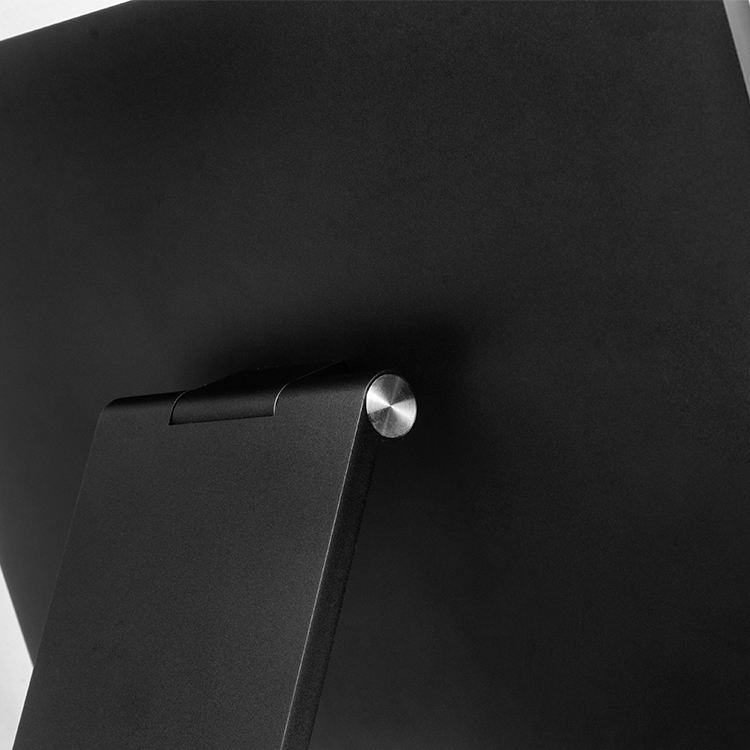

All-aluminum alloy body – extremely durable, rust-proof and wear-resistant
Narrow bezel design – 15.6″ high-definition IPS touchscreen (1920×1080) maximizes display space
Adapted for high-intensity commercial environments – suitable for high-frequency usage scenarios such as restaurants and retail stores
High-efficiency Android POS System
Rockchip RK3568 Quad-core Processor – Smoothly runs Android 11
4GB RAM + 64GB ROM (upgradeable) – Supports large-scale retail/restaurant systems
Dual-band Wi-Fi & Bluetooth 5.0 – Stable connection to printers, cash drawers and other peripherals
Rich expansion interfaces

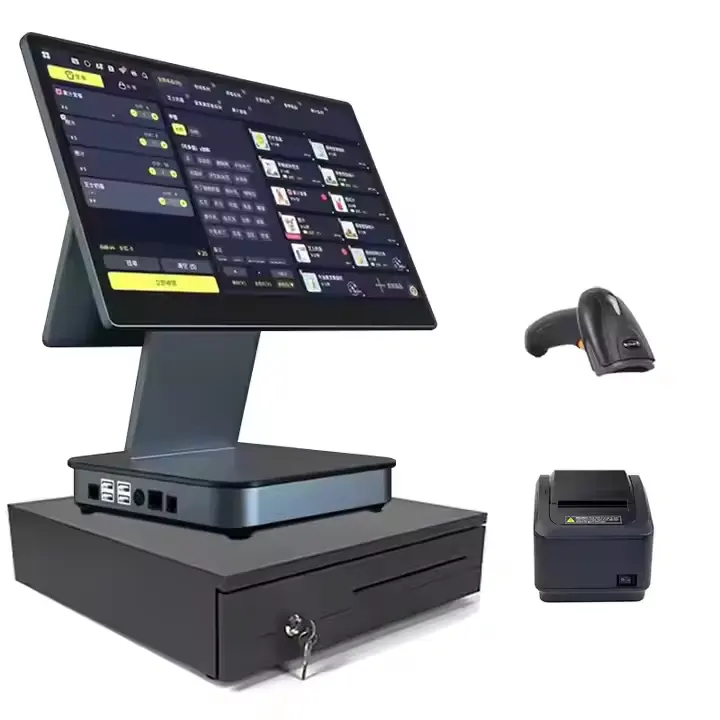

4× USB + 2× RS232 + 2× RJ45 (dual network ports) – can be connected to barcode scanners, customer displays, etc.
Built-in 1D/2D barcode scanning module (optional) – improves checkout speed

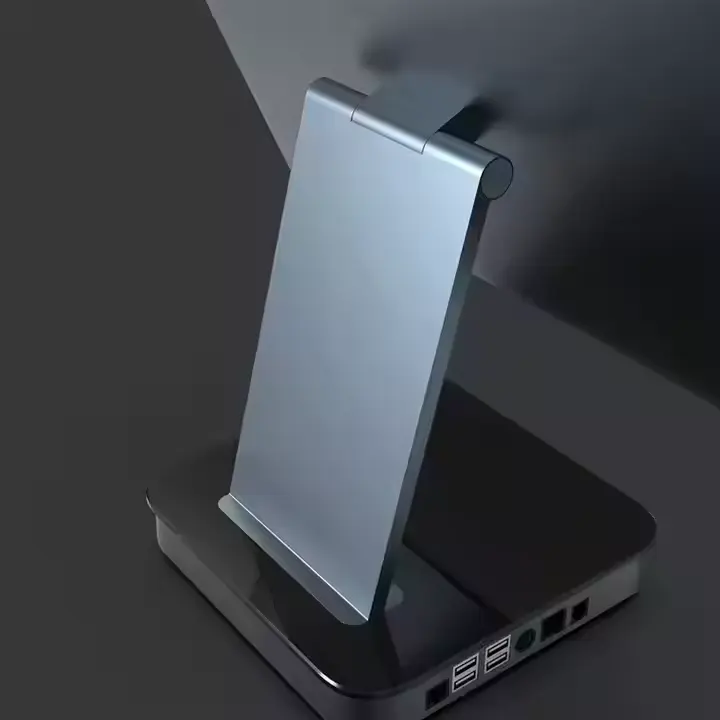

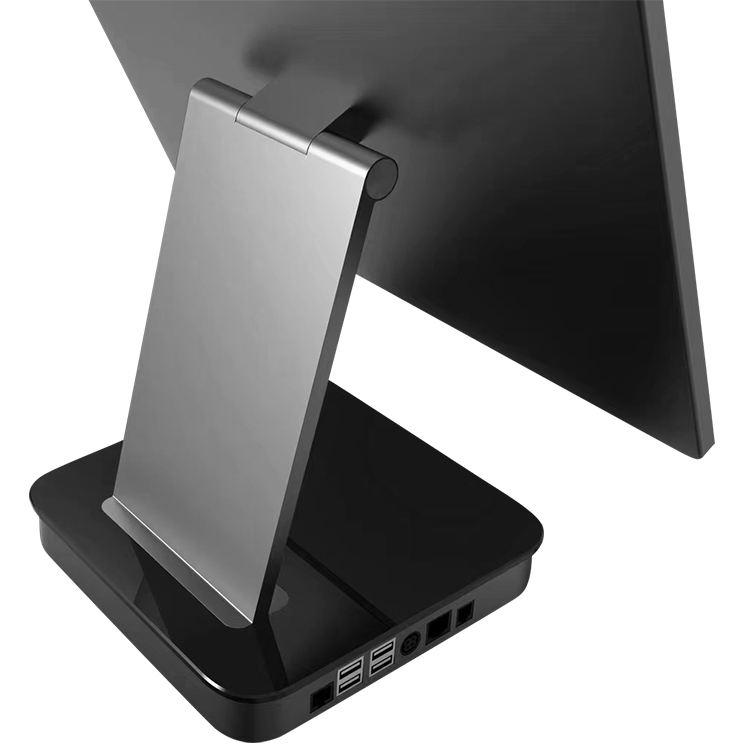

Supports VESA wall mounting & desktop stand – flexible installation
Professional customization
Pre-installed customized Android POS software – compatible with restaurant and retail management systems
Optional magnetic stripe reader (MSR) or NFC payment module – enhances payment convenience

Products

Windows POS

Android POS

Self Service Kiosk

Touch Screen Monitor

POS Peripherals

Handheld POS Terminal

Contact a DcaPOS Pos Expert Now !

If you want more information of our industry and products,please contact us.
Get to Know Us Now

Description



Specifications
Model No.
DCA-156A
DCA-156AD
SYSTEM
RK3566 ARM Cortex-A55 Quad-Core, 1.8Ghz
RK3568 ARM Cortex-A55 Quad-Core, 2.0Ghz
Processor
2GB DDR4 (4GB Option)
RAM
16GB EMMC (32GB Option)
ROM
Android 11
OS
15.6 inch LED Backlight Display
DISPLAY
Main Display
15.6 inch LED Backlight Display
Resolution
1366*768(1920*1080 Option)
Brightness
250 nits
Aspect Ratio
16:9
Second Display
/
10.1 inch LED Backlight Display (1280*800 Non Touch)
Touchscreen
Projective Capacitive Touch Screen
INTERFACE
USB
4*USB(Including 1*USB OTG)
LAN
1*RJ45 10/100M Ethernet
Scale
1*RJ12
Cash Drawer
1*RJ11
Power DC-IN
Input AC 100~240V/50~60hz, Output DC 12V/2A
PHYSICAL & ENVIRONMENTAL
Operating Temperature
Operating 0~40° at 5% to 90% Humidity
Storage Temperature
Storage -20°~60° at 10% to 90% Humidity
Dimensions
(W×H×D) 363x350x210 MM
Packing Dimensions
(W×H×D) 430x450x290 MM
Net Weight
3.18KG
Packing Weight
3.60KG
Color
Tarnish
Others
Wifi
IEEE 802.11 b/g/n, Single band 2.4 GHz
Bluetooth
Bluetooth 4.2
Speaker
1*2W Speaker
