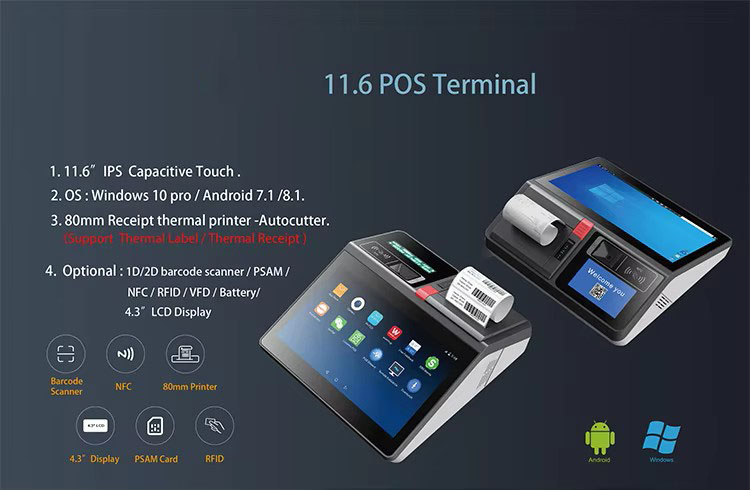

11.6 Inch All in One Android Pos Terminal Cash Register Touch Pos Systems With Printer
Windows POS
Self Service Kiosk
Touch Screen Monitor
Handheld POS Terminal
If you want more information of our industry and products,please contact us.
Get to Know Us Now
|

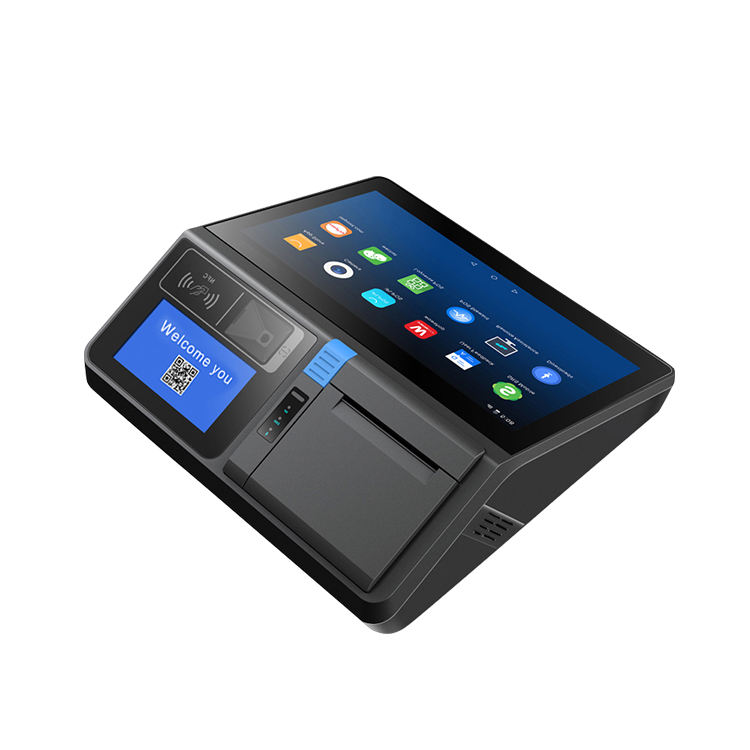

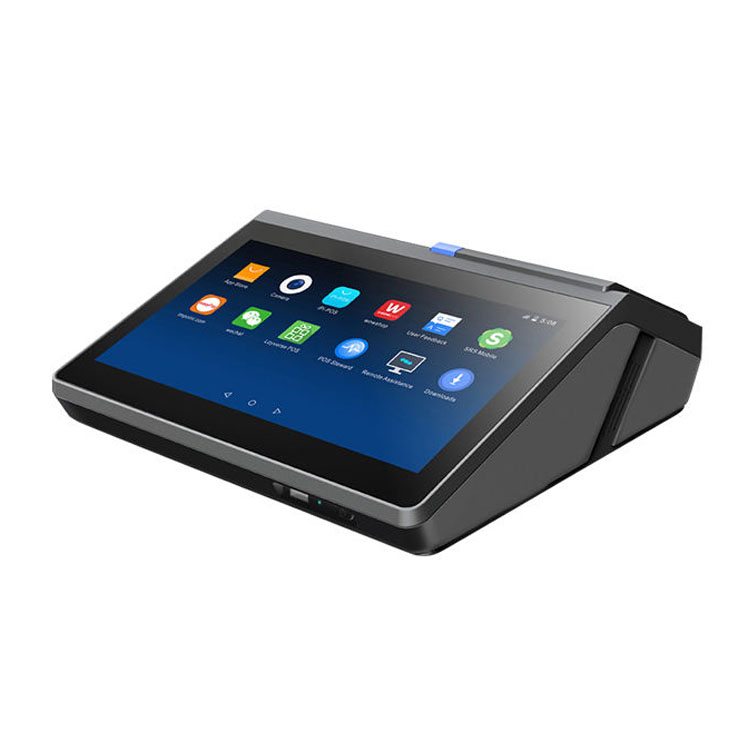

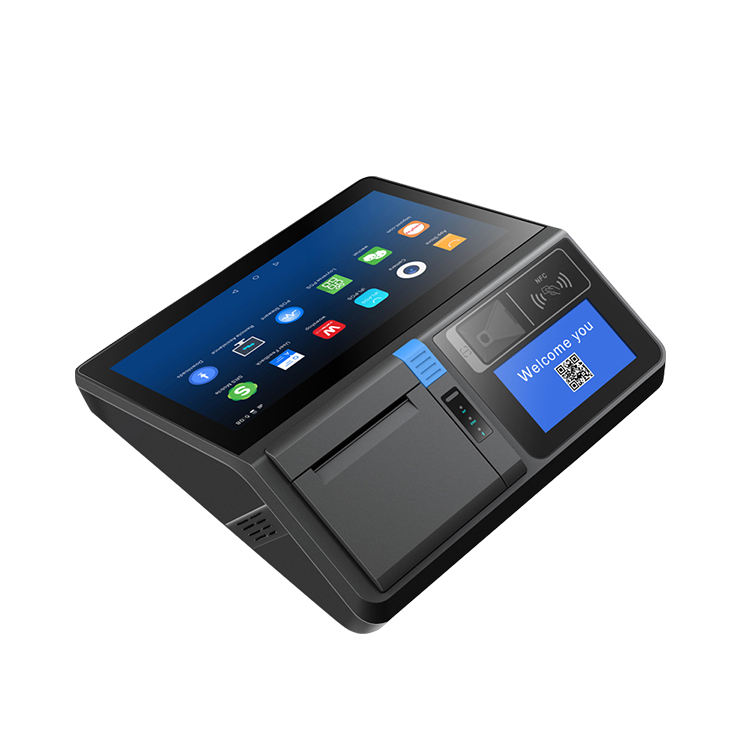

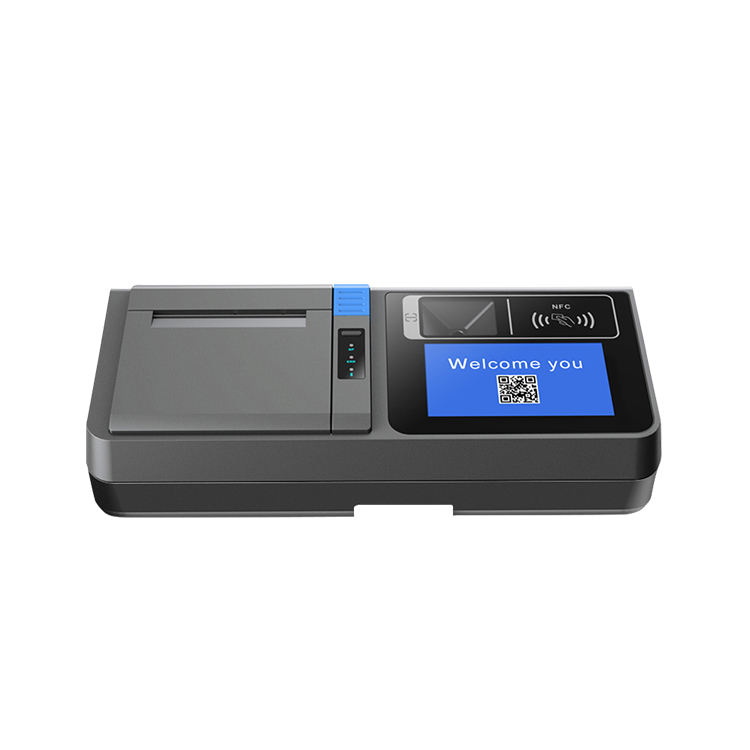

DCA-POS116A
|
|
|
Processor
|
Rockchip RK3288, Quad-core Cortex-A17 up to 1.8GHz
|
|
Memory
|
2GB Standard, 4GB Option
|
|
Storage
|
16GB Standard, 32GB Option
|
|
OS
|
Android 7.1 / 8.1
|
|
DISPLAY
|
|
|
Type
|
11.6 inch HD Display
|
|
Resolution
|
Standard 1366*768, 1920*1080 Option
|
|
Aspect Ratio
|
16:9
|
|
Brightness
|
250 nits
|
|
Touchscreen
|
Projective Capacitive Touch Screen
|
|
PRINTER
|
|
|
Printer Mechanism
|
Seiko Thermal Printer Mechanism with Auto Cutter
|
|
Interfaces
|
Standard USB Port, COM Port or Bluetooth Option
|
|
Printing Method
|
Direct Thermal
|
|
Printing Speed
|
200mm/s
|
|
Paper Width
|
79.5±0.5mm
|
|
Print Width
|
72mm
|
|
Paper Roll Diameter
|
60mm
|
|
INTERFACE
|
|
|
USB
|
5*USB
|
|
LAN
|
1*RJ45
|
|
Cash Drawer
|
2*RJ11
|
|
Serial
|
1*COM(RS232)
|
|
SD Card Slot
|
Support 64GB
|
|
Sim Card Slot
|
Sim Card Applicable Only With 4G Network Module
|
|
Power DC-IN
|
Input AC 100~240V/50~60hz, Output DC 12/5A
|
|
PHYSICAL&ENVIRONMENTAL
|
|
|
Operating Temperature
|
Operating 0~50°
|
|
Storage Temperature
|
Storage-20°~60°
|
|
Dimensions
|
292x100x297(MM)(W×H×D)
|
|
Packing Dimensions
|
370x380x200(MM)(W×H×D)
|
|
Net Weight
|
2.35KG
|
|
Packing Weight
|
5.20KG
|
|
Color
|
Black/Blue
|
|
OPTIONS & PERIPHERALS
|
|
|
2nd Display
|
4.3 inch LCD Display Option (Resolution: 800*480)
|
|
Customer Display
|
VFD Customer Display Option, 20 Characters*2 Line
|
|
Scanner
|
Embedded Scanner Option, Support 1D, 2D
|
|
Card Reader
|
NFC Option
|
|
Wifi
|
IEEE 802.11 a/b/g/n/ac
|
|
Bluetooth
|
Bluetooth 4.0 protocol
|
|
Speaker
|
0.8W Speaker Option
|
|
4G module
|
Support 4G TD-LTE, FDD-LTE (factory option)
|
|
Battery
|
6000mAh
|
